| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | SEHBL3 |
| Action | Snap |
| Additional Information | Temperature Rating -40 to 75 Deg C; Color Gray; Grade Industrial; Approval UL, CSA |
| Amperage Rating | 30A Max A |
| Application | Extra Heavy Duty Industrial |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock [R] |
| Catalog Number | SEHBL3 |
| Commerce Sector | Construction Materials |
| Commodity Code | 57240 |
| Commodity Description | Enclosures & Cabinets |
| Constructional Feature | Abuse/Corrosion Resistant, Dust Tight, Rainproof |
| Contact Configuration | Two Position |
| Contact Rating | 30A |
| CountryOfOrigin | PL |
| Current Rating | 30 Amp |
| DDCATEGORY | 1154 |

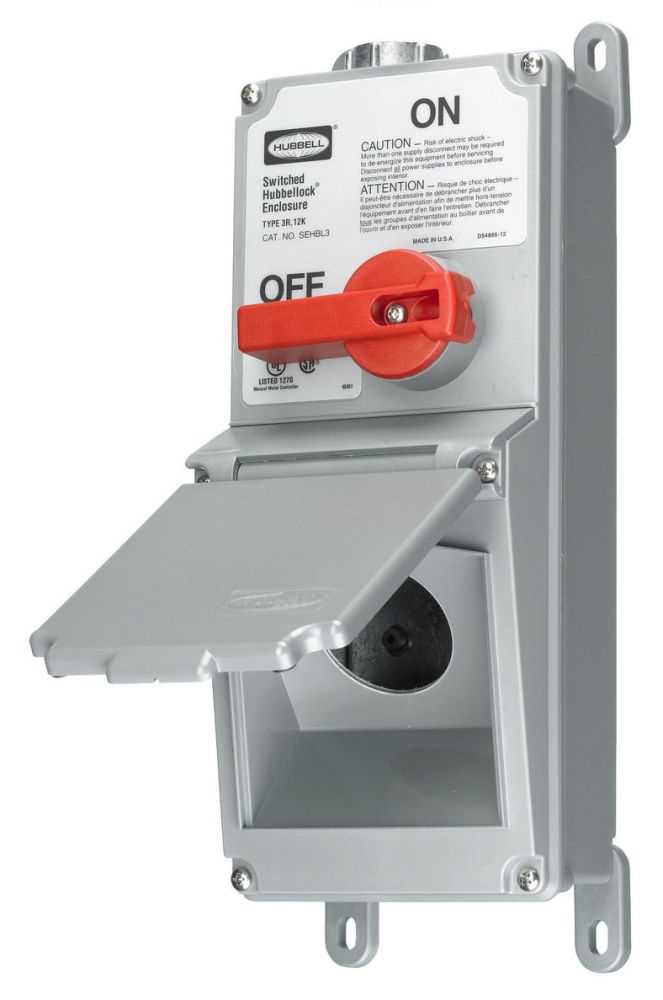

| Description Long | Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure With Receptacle, Three Pole, 30A Hubbellock, 3 Phase 600V AC, Terminal Screws, Gray. |
| Description Short | Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure With Receptacle, Three Pole, 30A Hubbellock, 3 Phase 600V AC, Terminal Screws, Gray |
| Directory | CIS |
| Door Type | Lockable |
| EU RoHS Indicator | No |
| Enclosure | Non-Metallic;NEMA 3R/12K, IP54 |
| Environmental Conditions | NEMA 4X |
| FEATURES Bullets | Accommodates 30-Amp, 4 Wire Hubbellock Receptacle;Lockable Handle Meets OSHA Lockout Requirements;Molded Valox Resists Abuse, Corrosion and Enhances Safety;Type 3R Rainproof or 12K Dust-tight |
| Families | 1154 |
| Family Description | Enclosures & Cabinets |
| Frequency Rating Maximum | 60 Hz |
| Frequency Rating Minimum | 60 Hz |
| Hub Type | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SWITCHED ENCLOSURE, HUBBELLOCK;SWITCHED ENCLOSURE |
| Item Number | 00600 |
| Long Description | SWITCHED ENCLOSURE RECEPTACLE, MOLDED VALOX MATERIAL; 4 WIRE(S); 600 VOLT AC 3-PHASE VOLTAGE RATING; NEMA 3R/12K, IP54 ENCLOSURE; 30 AMP CURRENT RATING; 3 POLE(S); ABUSE/CORROSION RESISTANT, DUST TIGHT, RAINPROOF; 3/4 INCH HUB TYPE; LOCKABLE |
| MSDS Form Number | * |
| Material | Composite;Molded Valox |
| Mounting | Mounting Feet |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Operating Cycles | 6,000 |
| Operating Temperature Maximum | 167 F |
| Operating Temperature Minimum | -40 F |
| Performance | 600V RMS - Electrical - Operations;Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V minimum;Electrical - Environmental - Max. Working Voltage;Electrical 6,000 cycles - Mechanical - Impact Resistance;External fully adjustable feet - Mechanical - Product Identification;Identification and ratings are part of external label and receptacle face - Mechanical - Terminal Identification;In accordance with UL 746C - Mechanical - Mounting;In accordance with UL, CSA and international conventions - Environmental - Flammability;IP54 suitability - Environmental - Operating Temperature;Maximum continuous +75C Minimum continuous -40C - Environmental - UV Resistance;Mechanical 10,000 cycles;UL94 5 VA and V0 classification - Environmental - Moisture Resistance |
| Product Description | SWITCHED ENCLOSURE, HUBBELLOCK |
| Product Keywords | WEBREADY |
| Product Name | Industrial Grade, Lever Actuated, Switched Enclosure With Receptacle, Three Pole, 30A Hubbellock, 3 Phase 600V AC, Terminal Screws |
| ProductLine | HUBW |
| Size | Standard Sized |
| Special Features | Standard Product |
| Standard | CSA Certified Type 3R and 12K Enclosure Rating;Listed to UL Standard |
| Switch Type | Lever |
| Type | Switched Enclosure |
| UNSPSC | 39122205 |
| UPC | 78358500600 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 Max;600 Volt AC 3-Phase |
| Wattage | 18000 W |
