| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | SETL3 |
| Action | Snap |
| Additional Information | Approval UL, CSA; Color Gray; Used On 3-Pole/4-Wire 30 Ampere Twist-Lock Receptacle |
| Amperage Rating | 30A Max A |
| Application | Extra Heavy Duty Industrial |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock [R] |
| Catalog Number | SETL3 |
| Commerce Sector | Construction Materials |
| Commodity Code | 57240 |
| Commodity Description | Enclosures & Cabinets |
| Constructional Feature | Dust Tight, Rainproof |
| Contact Configuration | Two Position |
| Contact Rating | 30A |
| CountryOfOrigin | PL |
| Current Rating | 30 Ampere |
| DDCATEGORY | 1154 |

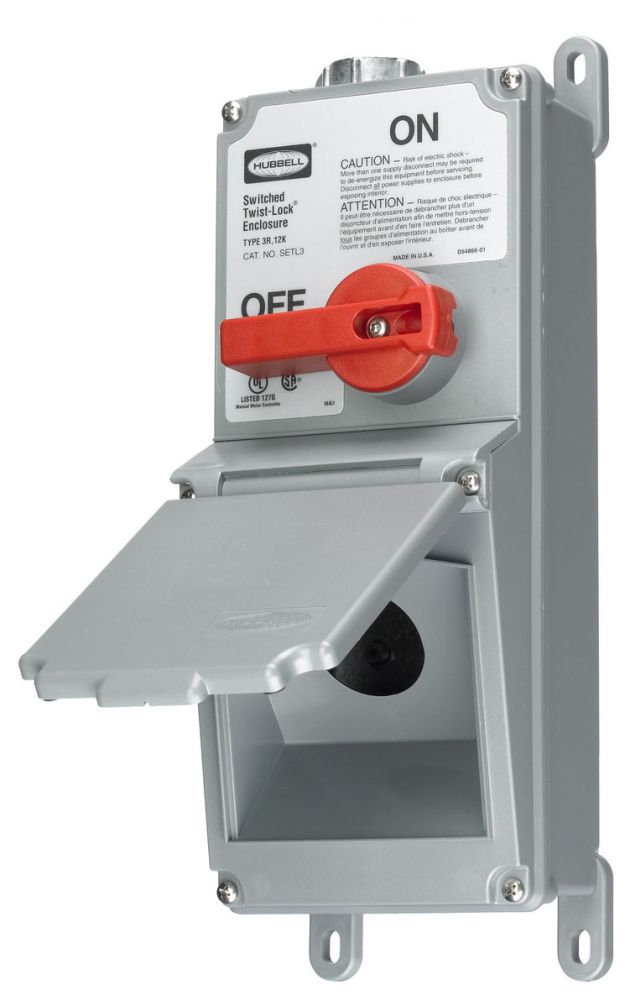

| Description Long | Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure, Three Pole, 30A 600V AC Max, Terminal Screws, Gray. |
| Description Marketing Copy | The Switched Twist-Lock and Hubbellock Enclosures integrate a receptacle and a switch to produce distinct advantages for the user. This enclosure replaces box, switch, cover and all in a compact design that meets Type 3R Rainproof or 12K Dust-tight requirements. The receptacle is angled downward for a low profile, and it maintains a low profile while accommodating either a 20 or 30 Amp Twist-Lock receptacle or 30 Amp, 4 wire Hubbellock receptacle. The enclosure can be used in top, bottom or back feed applications. The handle is designed to be locked in the OFF position for lockout protection. Hubbell has developed the Switched Safety Enclosure because users want to be able to disconnect higher voltage devices confidently. Hubbell responded with a line of Switched Safety Enclosures for Twist-Lock and Hubbellock receptacles. The provision of the integral switch and the receptacle in a compact, non-metallic enclosure encourages the safe operating practice of disconnecting at the switch rather than the plug and receptacle. For plants and factories in a wide variety of industries, as well as light industrial facilities, Hubbells Switched Enclosures offer an upgrade thats convenient, compact and easy to install. |
| Description Short | Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure, Three Pole, 30A 600V AC Max, Terminal Screws, Gray |
| Directory | CIS |
| Door Type | Lockable |
| EU RoHS Indicator | No |
| Enclosure | Non-Metallic;NEMA 3R/12K, IP54 |
| Environmental Conditions | NEMA 4X |
| FEATURES Bullets | Accommodates 20- or 30-Amp Twist-Lock Receptacle;Lockable Handle Meets OSHA Lockout Requirements;Molded Valox Resists Abuse, Corrosion and Enhances Safety;Type 3R Rainproof or 12K Dust-tight |
| Families | 1154 |
| Family Description | Enclosures & Cabinets |
| Frequency Rating Maximum | 60 Hz |
| Frequency Rating Minimum | 60 Hz |
| Hub Type | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SWITCHED ENCLOSURE, W/O RCPT;SW ENCL W/O RCPT |
| Item Number | 00605 |
| Long Description | SWITCHED SAFETY ENCLOSURE, VALOX MATERIAL; 4 WIRE(S); NEMA 3R/12K, IP54 ENCLOSURE; 30 AMPERE CURRENT RATING; 3 POLE(S); DUST TIGHT, RAINPROOF; 3/4 INCH HUB TYPE; LOCKABLE; TWIST-LOCK [R] BRAND; APPROVAL UL, CSA; COLOR GRAY |
| MSDS Form Number | * |
| Material | Composite;Valox |
| Mounting | Mounting Feet |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Operating Cycles | 6,000 |
| Operating Temperature Maximum | 167 F |
| Operating Temperature Minimum | -40 F |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V minimum;Electrical - Max. Working Voltage - 600V RMS;Electrical - Operations - Mechanical 10,000 cycles;Electrical 6,000 cycles;Environmental - Flammability - UL94 5 VA and V0 classification;Environmental - Moisture Resistance - IP54 suitability;Environmental - Operating Temperature - Maximum continuous +75C Minimum continuous -40C;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External fully adjustable feet;Mechanical - Product Identification - Identification and ratings are part of external label and receptacle face;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Product Description | SWITCHED ENCLOSURE, W/O RCPT |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure, Three Pole, 30A 600V AC Max, Terminal Screws, Gray |
| ProductLine | HUBW |
| Size | 11.38 in x 4.88 in x 4.5 in |
| Special Features | Standard Product |
| Standard | CSA Certified Type 3R and 12K Enclosure Rating;Listed to UL Standard |
| Switch Type | Lever |
| Type | Switched Enclosure |
| UNSPSC | 39122205 |
| UPC | 78358500605 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 Max |
| Wattage | 18000 W |
