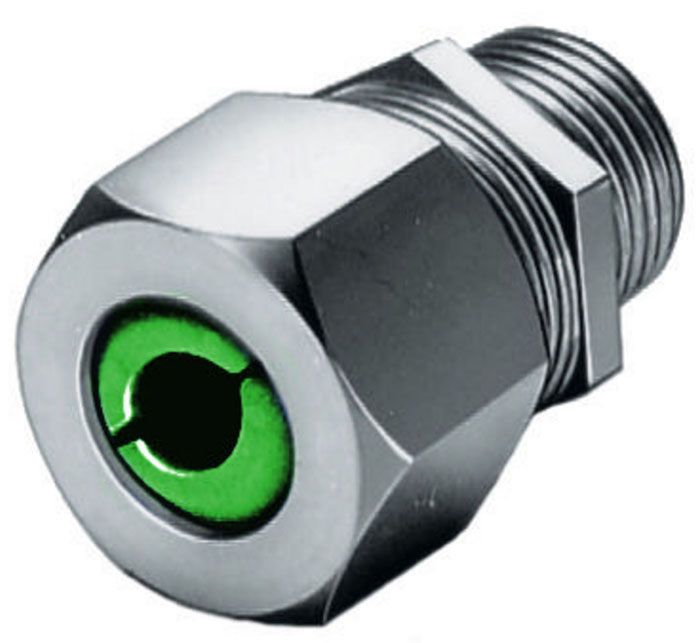

HUBW SHC1001SS

"CORDCON, STR ML, .16-.13"", 1/4"", SS"

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
"CORDCON, STR ML, .16-.13"", 1/4"", SS"

Mouse over image to zoom, click to enlarge

Description:
"CORDCON, STR ML, .16-.13"", 1/4"", SS"

UPC:  78358520701

Part Number: SHC1001SS

UNSPSC: 39121431

Status:  UNKNOWN

Retail Price:  $196.00 / EA
Your Price:  $96.67 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo SHC1001SS
Additional Information Enclosure NEMA 4/4X/12/13, IP66
Application Straight Male- Form 1;Hazardous Location
Approval UL 514B, CSA
Base Price 0.0000
Catalog Number SHC1001SS
Color Gray
Commerce Sector Construction Materials
Commodity Code 24900
Commodity Description Cable & Cord Grips
Conductor Range 0.06-0.13 in (1.6- 3.2 mm)
Cord Size 0.06 to 0.13 Inch
CountryOfOrigin US
DDCATEGORY 130
Degree Of Protection IP NEMA Type 4, 4X, 12 and 13
Description Long "Kellems Cord Connector, Straight Male, .16-.13"", "", Stainless"
Description Short "Kellems Cord Connector, Straight Male, .16-.13"", "","
Directory CIS
EU RoHS Indicator Yes
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
FV Item Type Cord Connectors
Families 130
Family Description Cable & Cord Grips
Image Location * Image
Industry ELX
InvoiceDescription "CORDCON, STR ML, .16-.13"", 1/4"", SS";1/4 .062-.125 CONN
Item Number 20701
Long Description CORD CONNECTOR, STRAIGHT MALE TYPE; STAINLESS STEEL MATERIAL; 1.01 INCH DIA X 1.36 INCH L SIZE; UL 514B, CSA APPROVAL; HAZARDOUS LOCATION APPLICATION; 1/4 INCH NPT THREAD SIZE; 0.06 TO 0.13 INCH CORD SIZE; ENCLOSURE NEMA 4/4X/12/13, IP66; SHC MODEL
MSDS Form Number *
Material Stainless Steel
Material Mounting Hardware Locknut or Tapped Opening
Material Quality Stainless Steel
Model SHC
Mounting Locknut or Tapped Opening
NEMA Rating 12;13;4;4X
Noun *
Number Of Conductors Single
Operating Temperature Maximum 225 F
Operating Temperature Minimum -30 F
Product Description "CORDCON, STR ML, .16-.13"", 1/4"", SS"
Product Keywords WEBREADY
Product Name Cable gland connectors
ProductLine HUBW
Size "1/4"" NPT" IN;1.01 Inch Dia x 1.36 Inch L
Special Features Standard Product
Standard UL 514B
Thread Size 1/4 Inch NPT
Type Cord Connectors;Straight Male
UNSPSC 39121431
UPC 78358520701
Vendor Name HUBBELL WIRING DEVICE/KELLEMS
Vendor Number 783585
Vendor Short Name HUBW
