| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | SHC1038SS |
| Additional Information | Color Orchid; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66 |
| Application | Straight Male- Form 3;Hazardous Location |
| Approval | UL 514B, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems |
| Carton Quantity | 15 |
| Catalog Number | SHC1038SS |
| Color | Metallic |
| Color Code | Orchid |
| Commerce Sector | Construction Materials |
| Commodity Code | 24900 |
| Commodity Description | Cable & Cord Grips |
| Conductor Range | 0.75- 0.88 in (19.0- 22.2 mm) |
| Cord Diameter | 0.75-0.88 in |
| Cord Size | 0.75 to 0.88 Inch |
| CountryOfOrigin | PR |
| DDCATEGORY | 130 |

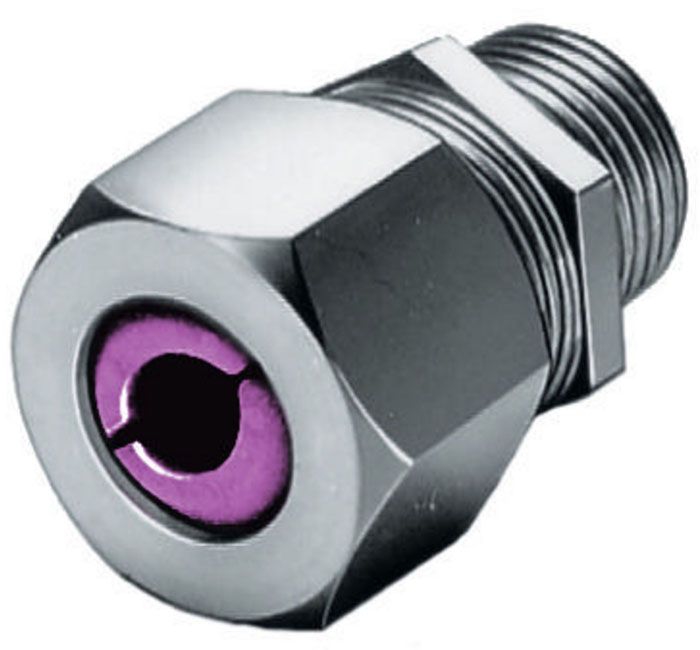

| Description Long | "Kellems Straight Male Cord Connector, .75-.88"", """ |
| Description Marketing Copy | "Cord Connectors - Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from "" to 3"" in straight male end, 90, 45, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. The zinc-plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating. These heavy-duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials. Their machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads. For larger size cord, NPT hub sizes 1"" to 2"", Hubbell utilizes malleable iron connectors which provide excellent holding and Liquidtight performance. Hubbells nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. Theyre available in NPT hub sizes from "" to 1"". Stainless steel cord connectors provide superior strength and corrosion resistance for industrial and military applications. They are machined from 300 series stainless steel and come in "" to 1"", NPT hub sizes." |
| Description Short | "Kellems Straight Male Cord Connector, .75-.88"", """ |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| FEATURES Bullets | Stainless steel cord connector provides superior strength and corrosion resistance |
| Families | 130 |
| Family Description | Cable & Cord Grips |
| Finish | Machined |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "CORDCON, STR ML, .75-.88"", 3/4"", SS";3/4 .75-.875 CONN |
| Item Number | 20738 |
| Item Type | Cord Connectors |
| Long Description | CORD CONNECTOR, STRAIGHT MALE TYPE; STAINLESS STEEL MATERIAL; 1.59 INCH DIA X 1.86 INCH L SIZE; UL 514B, CSA APPROVAL; HAZARDOUS LOCATION APPLICATION; 3/4 INCH NPT THREAD SIZE; 0.75 TO 0.88 INCH CORD SIZE; COLOR ORCHID |
| MSDS Form Number | * |
| Material | Stainless Steel |
| Material Mounting Hardware | Locknut or Tapped Opening |
| Model | SHC |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | NEMA Type 4, 4X, 12 and 13 |
| Noun | * |
| Number Of Conductors | Single |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30F to +225F (-34C to +107C) |
| Product Description | "CORDCON, STR ML, .75-.88"", 3/4"", SS" |
| Product Keywords | WEBREADY |
| Product Name | "Kellems Wire Management, Cord Connectors, Straight Male, .75-.88"", 3/4"", Stainless Steel" |
| ProductLine | HUBW |
| Series | Standard Duty |
| Size | "3/4"" NPT" IN;1.59 Inch Dia x 1.86 Inch L |
| Special Features | Standard Product |
| Standard | UL Listed |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) |
| Thread Size | 3/4 Inch NPT |
| Type | Straight Male |
| UNSPSC | 39121431 |
| UPC | 78358520738 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
