HUBW SWB2

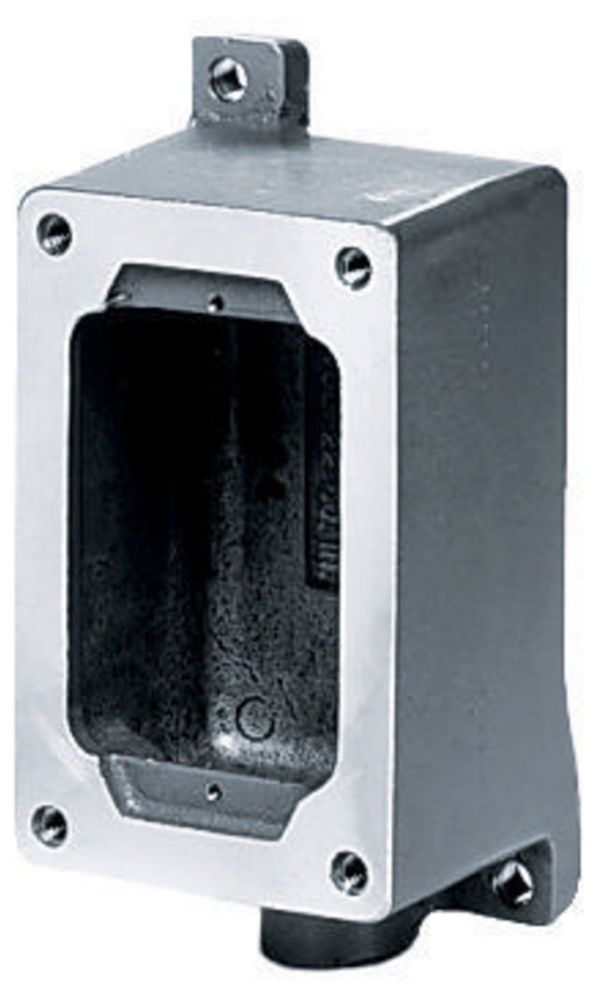

"SPLICE BOX, 1-G, DEAD END, 3/4"" HUB"

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
"SPLICE BOX, 1-G, DEAD END, 3/4"" HUB"

Mouse over image to zoom, click to enlarge

Description:
"SPLICE BOX, 1-G, DEAD END, 3/4"" HUB"

UPC:  78358541210

Part Number: SWB2

UNSPSC: 39121332

Status:  UNKNOWN

Retail Price:  $123.00 / EA
Your Price:  $88.60 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo SWB2
Additional Information Enclosure Rating Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7/9/C/D/E/F/G
Application Industrial/Commercial
Approval UL, CSA
Base Price 0.0000
Brand ID WIRING DEVICE-KELLEMS
Brand Name Hubbell Wiring Device-Kellems;Acceptor [R]
Cable Entry Through Hub
Carton Quantity 5
Catalog Number SWB2
Color Metallic
Commerce Sector Construction Materials
Commodity Code 27100
Commodity Description Steel Outlet Boxes
Construction Cast
CountryOfOrigin MX
Cubic Capacity 23 Cubic Inches
DDCATEGORY 139
Depth 2.25 Inch
Description Long "Straight Blade Devices, Back Boxes, 3/4"" NPT Dead-End Design, Explosion Proof Products, Cast Metal, Single Pack"
Description Short "Straight Blade Devices, Back Boxes, 3/4"" NPT Dead-End Design, Explosion Proof Products, Cast Metal, Single Pack"
Directory CIS
EU RoHS Indicator Contact Manufacturer
FEATURES Bullets Copper Free Aluminum;Dead-end design
Families 139
Family Description Steel Outlet Boxes
Height 2.25 in;4.63 Inch
Hub Location (1) Dead End
Hub Size 3/4 Inch Threaded
Image Location * Image
Industry ELX
InvoiceDescription "SPLICE BOX, 1-G, DEAD END, 3/4"" HUB";1G SPLC BX 3/4-IN HUB
Item Number 41210
Knockouts "3/4"" NPT Hub"
Long Description DEVICE BOX, CAST METAL MATERIAL; 3 INCH; 4.63 INCH; 2.25 INCH; 3/4 INCH THREADED HUB SIZE; 1 HUB(S); 1 GANG(S); UL, CSA APPROVAL; (1) DEAD END HUB LOCATION; ACCEPTOR [R] BRAND
MSDS Form Number *
Material Aluminum;Cast Metal
Model SWB
Mounting Mounting Screws
Noun *
Number Of Gangs 1
Number Of Hubs 1
Number Of Outlet Accepts 1-Device
Product Description "SPLICE BOX, 1-G, DEAD END, 3/4"" HUB"
Product Keywords WEBREADY
Product Name "Straight Blade Devices, Back Boxes, 3/4"" NPT Dead-End Design, Explosion Proof Products, Cast Metal, Single Pack"
ProductLine HUBW
Series SWB Series Box
Size 4.63 in x 3 in x 2.25 in
Special Features Feed-Thru Box
Standard UL Listed
Sub Brand Straight Blade Devices
Temperature Range Maximum 75 Degrees C to -40 Degrees C without Impact
Type Explosion Proof Splice Box
UNSPSC 39121332
UPC 78358541210
Vendor Name HUBBELL WIRING DEVICE/KELLEMS
Vendor Number 783585
Vendor Short Name HUBW
Width 3 in;3 Inch
