| Manufacturer Name | HONEYWELL INC |
| MfgPartNo | M7284Q1009 |
| Additional Information | Mounting Type Foot; Connection Type Screw Terminal; Rotation Type Clockwise; Control Signal Rating 4 to 20 Milliamp; Nominal Timing 30 to 60 Second; Includes Transformer, Screw Terminal Adapter, (2) Auxiliary Switch |
| Angle Of Rotation | 90 Degree |
| Application | Control Damper and Valve |
| Approval | UL (Canada and US), CE, RoHS |
| Base Price | 0.0000 |
| Body Material | Die-Cast Aluminum |
| Brand Name | Modutrol IV[TM] |
| Catalog Number | M7284Q1009 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46160 |
| Commodity Description | Limit Switch Arms, Actuators & Operators |
| Current Rating | 0.24 Amp |
| DDCATEGORY | 2186 |
| Directory | CIS |
| Enclosure | NEMA 3 |
| Families | 2186 |
| Family Description | Limit Switch Arms, Actuators & Operators |
| Frequency Rating | 50/60 Hertz |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | VLV/DPR ACTUATOR |
| Item Number | 05797 |

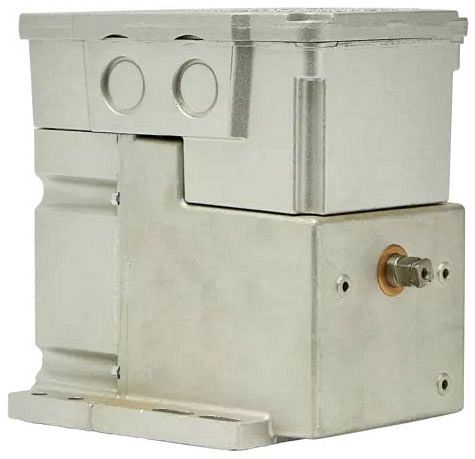

| Long Description | DAMPER ACTUATOR, ELECTRIC, MODULATING TYPE; 5-1/2 INCH WIDTH X 7-5/16 INCH DEPTH X 6-7/16 INCH HEIGHT SIZE; 120 VOLT MAX. AC VOLTAGE; 50/60 HERTZ FREQUENCY RATING; NON-SPRING RETURN OPERATION TYPE; UL (CANADA AND US), CE, ROHS APPROVAL |
| MSDS Form Number | * |
| Maximum AC Voltage | 120 Volt |
| Model | M7284 |
| Noun | * |
| Operating Temperature | -40 to 150 Deg F |
| Operation Type | Non-Spring Return |
| Power Rating | 23 Watt |
| Product Description | VLV/DPR ACTUATOR |
| Product Keywords | WEBREADY |
| Product Name | Limit switches |
| ProductLine | HW |
| Size | 5-1/2 Inch Width x 7-5/16 Inch Depth x 6-7/16 Inch Height |
| Torque | 150 Inch-Pound |
| Type | Electric, Modulating |
| UNSPSC | 39121509 |
| UPC | 08526705797 |
| Vendor Name | HONEYWELL HOME |
| Vendor Number | 085267 |
| Vendor Short Name | HW |
| Voltage Rating | 120 Volt AC |
