| Manufacturer Name | IDEAL INDUSTRIES INC |
| MfgPartNo | 30-073 |
| Additional Information | RoHS Compliant; Insert Material Steel; Overall Dimension 0.44 Inch Diameter x 0.86 Inch Height |
| Application | Insulating or Joining 2 or more conductors |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Ideal;Wire-Nut [R] |
| Catalog Number | 30-073 |
| Color | Orange |
| Commerce Sector | Construction Materials |
| Commodity Code | 64200 |
| Commodity Description | Fixture Connectors (Wire-Nuts,Etc.) |
| Conductor Range | 22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14 |
| CountryOfOrigin | USA |
| DDCATEGORY | 295 |
| Directory | CIS |
| Environmental Conditions | Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) |
| Families | 295 |
| Family Description | Fixture Connectors (Wire-Nuts,Etc.) |

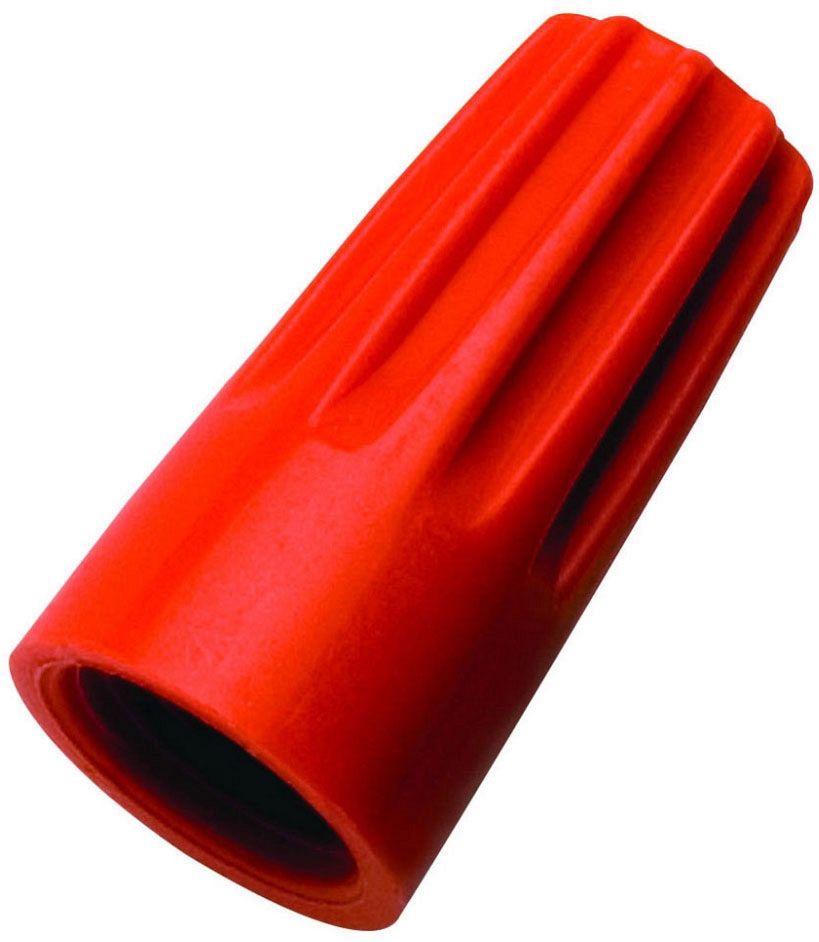

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | WIRENUT 73B ORANGE, 100 BX;ORG 73B WIRE NUT-100BX |
| Item Number | 30073 |
| Long Description | WIRE CONNECTOR, ORANGE COLOR; (1) 18 AWG WITH (1) 20 AWG MIN. WIRE COMBINATION SIZE; (2) 14 AWG MAX. WIRE COMBINATION SIZE; 22 TO 14 AWG WIRE SIZE; UL, CSA APPROVAL; 600 VOLT VOLTAGE RATING; SOLID AND/OR STRANDED WIRE TYPE |
| MSDS Form Number | * |
| Material | Flame-Retardant Polypropylene |
| Maximum Wire Combination Size | (2) 14 AWG |
| Minimum Wire Combination Size | (1) 18 AWG with (1) 20 AWG |
| Model | 73B |
| Noun | * |
| Number Of Conductors | 1 to 5 |
| Product Description | ORG 73B WIRE NUT-100BX |
| Product Keywords | WEBREADY |
| Product Name | Twist on wire connector |
| ProductLine | IDEAL |
| Shell Material | Zinc Plated Polypropylene |
| Special Features | Features: Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time; No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation; Deep Skirt Helps Protect Against Flash-Over; Reusable For Easy Circuit Changes And Additions; Tough, UL94V-2 Flame-Retardant Shell Rated At 105 Degree C (221 Degree F); UL Listed To 486C And CSA Certified To C22.2 #188; Comply With Federal Specification W-S-610E; Model Number: 73B; Flammability Rating: UL 94V-2 |
| Spring Type | Fixed, Square Wire |
| Standard | CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E |
| Sub Brand | Wire-Nut |
| Type | Twist-On |
| UNSPSC | 39121445 |
| UPC | 78325030073 |
| Vendor Name | IDEAL INDUSTRIES INC |
| Vendor Number | 783250 |
| Vendor Short Name | IDEAL |
| Voltage Rating | 600 V;600 Volt |
| Wire Size | 22 to 14 AWG |
| Wire Type | Solid and/or Stranded |
