| Manufacturer Name | IDEAL INDUSTRIES INC |
| MfgPartNo | 30-211 |
| Additional Information | Overall Dimension 35/64 Inch Diameter x 63/64 Inch Height; Includes (1) K-2422 Set Screw Holder; Applicable Standard Federal Specification W-S-610E |
| Approval | UL 486C, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | 30-211 |

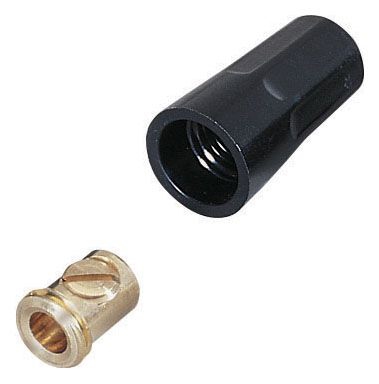

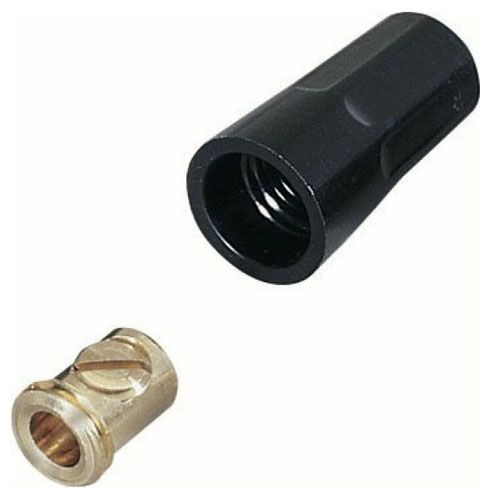

| Color | Brass Connector, Black Shell |
| Commerce Sector | Construction Materials |
| Commodity Code | 57130 |
| Commodity Description | Unshielded Twisted-Pair Connectors |
| CountryOfOrigin | USA |
| DDCATEGORY | 1144 |
| Directory | CIS |
| Families | 1144 |
| Family Description | Unshielded Twisted-Pair Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SET SCREW 11 CONN(BOX OF 100);SIZE 11 S/SCR WIRECONN |
| Item Number | 30211 |
| Long Description | SET SCREW WIRE CONNECTOR, (1) #14, (1) #20 MIN. WIRE COMBINATION SIZE; (3) #14, (2) #18 MAX. WIRE COMBINATION SIZE; 22 TO 10 AWG WIRE SIZE; UL 486C, CSA C22.2 APPROVAL; 600 VOLT VOLTAGE RATING; 150 DEG C TEMPERATURE RATING; 100 PER BOX STANDARD PACKAGE |
| MSDS Form Number | * |
| Material | Brass, Flame-retardant polypropylene shell |
| Maximum Wire Combination Size | (3) #14, (2) #18 |
| Minimum Wire Combination Size | (1) #14, (1) #20 |
| Noun | * |
| Number Of Conductors | 1 to 6 |
| Product Description | SIZE 11 S/SCR WIRECONN |
| Product Keywords | WEBREADY |
| Product Name | Wire connectors |
| ProductLine | IDEAL |
| Size | 33/64 IN Width X 63/64 IN Height |
| Special Features | Features: Eliminates Need For Restripping Wire Each Time Connection Is Disturbed; Solid Brass Sleeves ;Set-Screw Easily And Securely Applies Maximum Compression To Conductors To Ensure A Vibration-Resistant Splice; Permits Fast Visual Inspection Of Splice; Tough, Flame-Retardant Shell Rated At 150C (302F); Ul Listed To 486C And Csa Certified To C22.2; Model: 11; Width: 33/64 IN; Height: 63/64 IN |
| Standard | CSA C22.2, 486C UL Listed |
| Standard Package | 100 per Box |
| Temperature Rating | 150 , 302 DEG C/F;150 Deg C |
| Type | Set-Screw |
| UNSPSC | 39121409 |
| UPC | 78325030211 |
| Vendor Name | IDEAL INDUSTRIES INC |
| Vendor Number | 783250 |
| Vendor Short Name | IDEAL |
| Voltage Rating | 600;600 Volt |
| Wire Size | 22 - 10 AWG;22 to 10 AWG |
