| Manufacturer Name | IDEAL INDUSTRIES INC |
| MfgPartNo | 30-222 |
| Additional Information | Overall Dimension 11/16 Inch x 1 Inch Height; Includes (1) K-2422 Set Screw Holder; Applicable Standard Federal Specification W-S-610E |
| Approval | UL 486C, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Ideal |
| Catalog Number | 30-222 |
| Color | Black/Brass |
| Commerce Sector | Construction Materials |
| Commodity Code | 64200 |
| Commodity Description | Fixture Connectors (Wire-Nuts,Etc.) |
| CountryOfOrigin | USA |
| DDCATEGORY | 295 |
| Directory | CIS |
| Families | 295 |
| Family Description | Fixture Connectors (Wire-Nuts,Etc.) |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SET SCREW 22 CONN(BOX OF 100);SIZE 22 S/SCR WIRECONN |
| Item Number | 30222 |

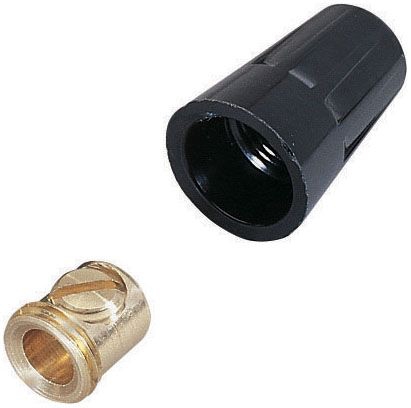

| Long Description | SET SCREW WIRE CONNECTOR, (1) #16, (3) #18 MIN. WIRE COMBINATION SIZE; (2) #10, (1) #12 MAX. WIRE COMBINATION SIZE; 20 TO 10 AWG WIRE SIZE; UL 486C, CSA C22.2 APPROVAL; 600 VOLT VOLTAGE RATING; 150 DEG C TEMPERATURE RATING; 100 PER BOX STANDARD PACKAGE |
| MSDS Form Number | * |
| Material | Brass/Flame-Retardant Polypropylene |
| Maximum Wire Combination Size | (2) #10, (1) #12 |
| Minimum Wire Combination Size | (1) #16, (3) #18 |
| Noun | * |
| Number Of Conductors | 1 to 6 |
| Product Description | SIZE 22 S/SCR WIRECONN |
| Product Keywords | WEBREADY |
| Product Name | Wire connectors |
| ProductLine | IDEAL |
| Size | 11/16 IN Width X 1-1/64 IN Height |
| Special Features | Features: Eliminates Need For Restripping Wire Each Time Connection Is Disturbed; Solid Brass Sleeves ;Set-Screw Easily And Securely Applies Maximum Compression To Conductors To Ensure A Vibration-Resistant Splice; Permits Fast Visual Inspection Of Splice; Tough, Flame-Retardant Shell Rated At 150C (302F); Ul Listed To 486C And Csa Certified To C22.2; Model: 22; Width: 11/16 IN; Height: 115625 IN |
| Standard | CSA C22.2, 486C UL Listed |
| Standard Package | 100 per Box |
| Temperature Rating | 150 , 302 DEG C/F;150 Deg C |
| Type | Set-Screw |
| UNSPSC | 39121409 |
| UPC | 78325030222 |
| Vendor Name | IDEAL INDUSTRIES INC |
| Vendor Number | 783250 |
| Vendor Short Name | IDEAL |
| Voltage Rating | 600 V;600 Volt |
| Wire Size | 20 - 10 AWG;20 to 10 AWG |
