| Manufacturer Name | IDEAL INDUSTRIES INC |
| MfgPartNo | 30-454 |
| Additional Information | RoHS Compliant; Insert Material Steel; Overall Dimension 1.2 Inch Width x 1.45 Inch Height; Strip Length 7/8 Inch |
| Application | Insulating or Joining 2 or more conductors |
| Approval | UL, CSA, IEC |
| Base Price | 0.0000 |
| Brand Name | Ideal;Wing-Nut [R] |
| Catalog Number | 30-454 |
| Color | Blue |
| Commerce Sector | Construction Materials |
| Commodity Code | 64200 |
| Commodity Description | Fixture Connectors (Wire-Nuts,Etc.) |
| Conductor Range | 14 - 6 AWG, Min 3 - 12, MAX 1-6 w/2-8 |
| CountryOfOrigin | USA |
| DDCATEGORY | 295 |
| Directory | CIS |
| Environmental Conditions | Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) |
| Families | 295 |
| Family Description | Fixture Connectors (Wire-Nuts,Etc.) |

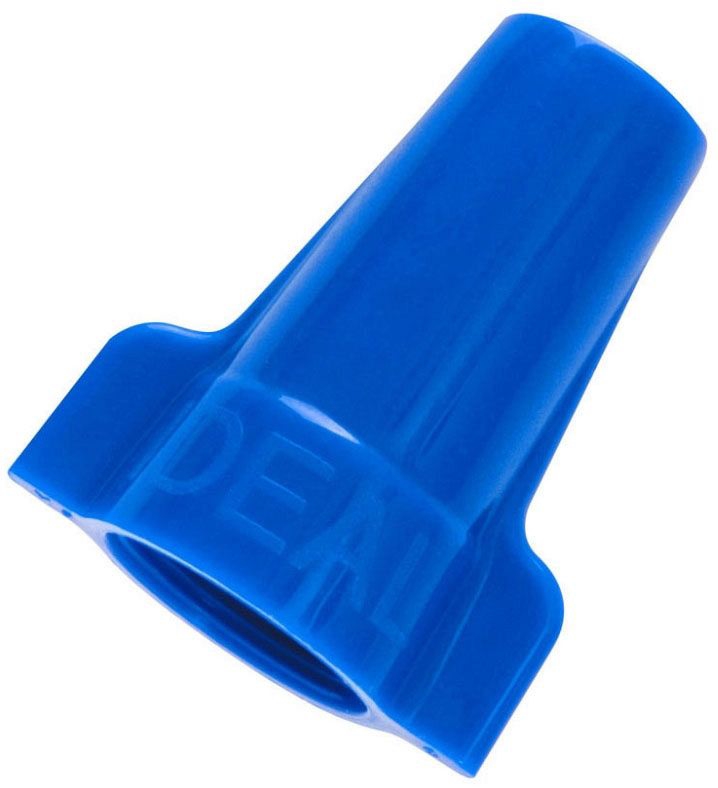

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | WINGNUT 454 BLUE, 25 BOX;BLU TW WIRE NUT-25BX |
| Item Number | 30454 |
| Long Description | WIRE CONNECTOR, CONTOURED WING TYPE; BLUE COLOR; (5 TO 6) 14 AWG MIN. WIRE COMBINATION SIZE; (1 TO 2) 6 AWG MAX. WIRE COMBINATION SIZE; 14 TO 6 AWG WIRE SIZE; UL, CSA, IEC APPROVAL; 600 VOLT VOLTAGE RATING; 221 DEG F TEMPERATURE RATING |
| MSDS Form Number | * |
| Material | Flame-Retardant Polypropylene |
| Maximum Wire Combination Size | (1 to 2) 6 AWG |
| Minimum Wire Combination Size | (5 to 6) 14 AWG |
| Model | 454 |
| Noun | * |
| Number Of Conductors | 1 to 6 |
| Product Description | BLU TW WIRE NUT-25BX |
| Product Keywords | WEBREADY |
| Product Name | Twist on wire connector |
| ProductLine | IDEAL |
| Shell Material | Zinc Plated Thermoplastic Polymer |
| Special Features | Features: Specially designed contour wings provide a secure grip for extra levarage ;Live action Spring expands to accept wire shape abd size with no pre-twisting required;Square wire spring threads directly onto conductors for fast, secure connections;Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection;Togh UL 94V-2 flame-retardent shell rated at 105 deg c(221 deg F); UL Listed To 486C And CSA Certified To C22.2 #188; Comply With Federal Specification W-S-610E; Model Number: 454; Flammability Rating: UL94V-2 |
| Spring Type | Live Action |
| Standard | CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E, RoHS Compliant |
| Sub Brand | Wing-Nut |
| Temperature Rating | 221 Deg F |
| Type | Twist-On;Contoured Wing |
| UNSPSC | 39121445 |
| UPC | 78325030454 |
| Vendor Name | IDEAL INDUSTRIES INC |
| Vendor Number | 783250 |
| Vendor Short Name | IDEAL |
| Voltage Rating | 600 V;600 Volt |
| Wire Size | 14 to 6 AWG |
| Wire Type | Solid and/or Stranded |
