| Manufacturer Name | IDEAL INDUSTRIES INC |
| MfgPartNo | 89-212 |
| Additional Information | Torque Rating 16 Inch-Pound; Center Spacing 0.562 Inch; Screw Material Zinc Plated Steel |
| Amperage Rating | 30 A |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Ideal |
| Catalog Number | 89-212 |
| Commerce Sector | Construction Materials |
| Commodity Code | 64400 |
| Commodity Description | Terminal Blocks & Accessories |
| CountryOfOrigin | MEX |
| Current Rating | 30 Amp (UL) |
| DDCATEGORY | 297 |
| Directory | CIS |
| Families | 297 |
| Family Description | Terminal Blocks & Accessories |
| Housing Material | Rugged Polyester Thermoplastic |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | TERMINAL STRIP 12-CIRCUIT;12CKT TERMINAL STRIP |
| Item Number | 89212 |
| Long Description | TERMINAL STRIP, CENTER SPACING TYPE; 22 TO 10 AWG (COPPER) WIRE SIZE; UL, CSA APPROVAL; 600 VOLT (UL) VOLTAGE RATING; SURFACE MOUNTING; 30 AMP (UL) CURRENT RATING; -40 TO 130 DEG C TEMPERATURE RATING; RUGGED POLYESTER THERMOPLASTIC HOUSING MATERIAL |
| MSDS Form Number | * |
| Material | Zinc-Plated Steel Screw |
| Model | 89-200 |
| Mounting | Surface |
| Noun | * |
| Number Of Circuits | 12 |

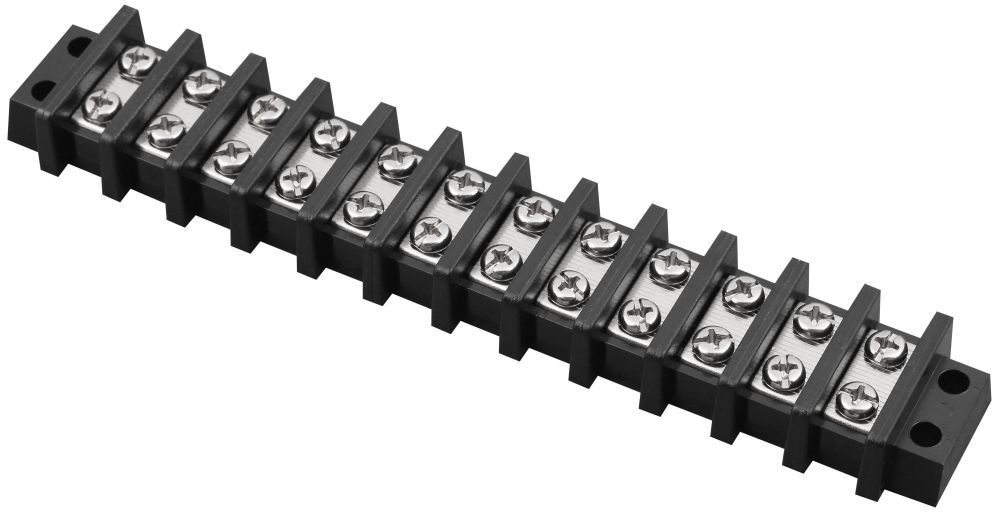

| Product Description | 12CKT TERMINAL STRIP |
| Product Keywords | WEBREADY |
| Product Name | Terminal strips |
| ProductLine | IDEAL |
| Spacing | 0.562 IN |
| Special Features | Features: Torque Rating of 16 in-lbs; Rugged base eliminates breakage; Center spacing of 0.562 inch (14.3mm); Accepts up to #10 AWG wire; Corrosion resistant surface plates with #8 philslot screws; Rated up to 600V, 30A; Accessory jumpers available;Heavy-duty, corrosion-resistant screws, surface plates and optional hardware; Accessory hardware provides a variety of termination options; Available cover helps prevent contact with live terminals; Rugged polyester thermoplastic base (UL Rated 94V-0); Operating temperature rated from 130C (260F) to -40C (-40F); UL Recognized (E62622) and CSA Certified (LR15364).; Number Of Circuits: 12; Torque Rating: 16 IN-LB; Terminal Screw Size: 12 |
| Standard | CSA, UL Listed, RoHS |
| Temperature Rating | -40 to 130 Deg C |
| Terminal Type | #8-32 TPI Philips Slotted Screw |
| Type | Center Spacing |
| UNSPSC | 39121407 |
| UPC | 78325089212 |
| Vendor Name | IDEAL INDUSTRIES INC |
| Vendor Number | 783250 |
| Vendor Short Name | IDEAL |
| Voltage Rating | 600 V;600 Volt (UL) |
| Wire Size | 22 - 10 AWG;22 to 10 AWG (Copper) |
