| Manufacturer Name | IDEAL INDUSTRIES INC |
| MfgPartNo | 89-5047 |
| Additional Information | Dielectric Diameter 0.142 to 0.148 Inch; Frequency Range 0 Mega Hertz to 3 Giga Hertz |
| Application | For CCTV System Installations/Integrations And General Purpose Applications on RG 59 Cable;CCTV, Satellite |
| Base Price | 0.0000 |
| Body Material | Nickel Plated Brass |
| Brand Name | InSITE[R] |
| Cable Insulation Outer Diameter | 0.23 to 0.25 Inch |
| Cable Type | RG-59 |
| Catalog Number | 89-5047 |
| Center Conductor Size | 23 to 18 AWG |
| Commerce Sector | Construction Materials |
| Commodity Code | 57110 |
| Commodity Description | Coaxial & Twinaxial Connectors |
| Conductor Range | 029 - 042 IN, 20 - 18 AWG Solid Center Conductor |
| Configuration | Straight |
| Contact Material | Gold Plated |
| CountryOfOrigin | CHN |
| Coupling Style | BNC |
| DDCATEGORY | 1142 |
| Directory | CIS |
| Families | 1142 |
| Family Description | Coaxial & Twinaxial Connectors |
| Finish | Nickel-Plated |

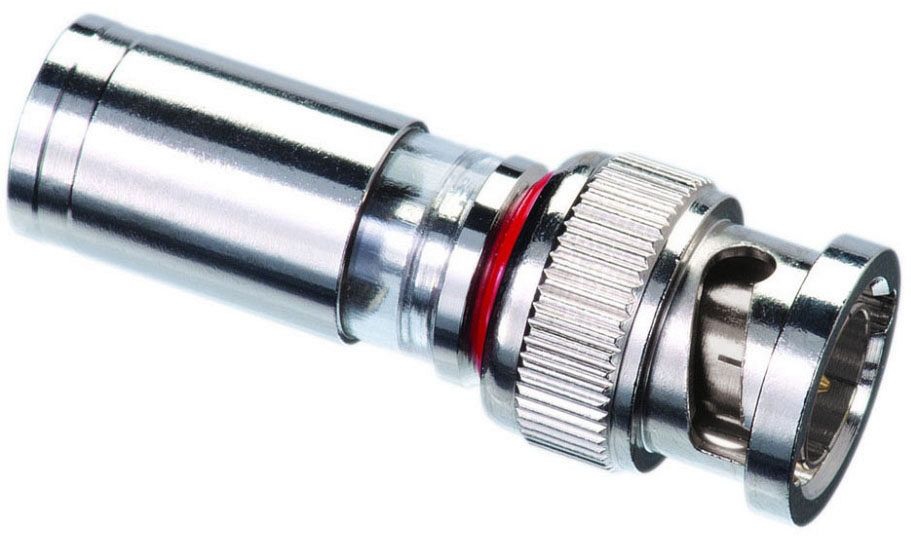

| Image Location | * Image |
| Impedance | 75 Ohm |
| Industry | ELX |
| InvoiceDescription | RG59 BNC COMPR CONN 35 JR;RG59 BNC COMPRN CONN |
| Item Number | 68940 |
| Long Description | COMPRESSION CONNECTOR, RG-59 CABLE TYPE; STRAIGHT CONFIGURATION; CCTV, SATELLITE APPLICATION; 35 PER JAR STANDARD PACKAGE; NICKEL PLATED BRASS BODY MATERIAL; 0.23 TO 0.25 INCH CABLE INSULATION OUTER DIAMETER; GOLD PLATED CONTACT MATERIAL |
| MSDS Form Number | * |
| Material | Brass |
| Noun | * |
| Product Description | RG59 BNC COMPRN CONN |
| Product Keywords | WEBREADY |
| Product Name | Coaxial connectors |
| ProductLine | IDEAL |
| Special Features | Features: Nickel-Plated, Brass-Construction For Superior Corrosion Resistance; Moisture-Inhibiting Design; Approved For Indoor And Outdoor Use; Use 30-793 Compression Tool; 75 OHM Nominal Impedance; Gold-Plated Pin Contact Area; Available In Plenum Versions; Nominal Impedance: 75 OHM; Dielectric Diameter: 0.140 - 0.150 IN; Coaxial Cable Type: RG-59; Overall Jacket Diameter: 0.220 - 0.250 IN |
| Standard Package | 35 per Jar |
| Type | BNC |
| UNSPSC | 39121414 |
| UPC | 78325068940 |
| Vendor Name | IDEAL INDUSTRIES INC |
| Vendor Number | 783250 |
| Vendor Short Name | IDEAL |
