| Manufacturer Name | IDEAL INDUSTRIES INC |
| MfgPartNo | 89-612 |
| Additional Information | Torque Rating 7 Inch-Pound |
| Amperage Rating | 35 A |
| Approval | UL, CUL |
| Base Price | 0.0000 |
| Brand Name | Ideal |
| Catalog Number | 89-612 |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 64400 |
| Commodity Description | Terminal Blocks & Accessories |
| CountryOfOrigin | TWN |
| Cover Type | No |
| Current Rating | 35 Amp (UL/CUL) |
| DDCATEGORY | 297 |
| Directory | CIS |
| Families | 297 |
| Family Description | Terminal Blocks & Accessories |
| Housing Material | Rugged Nylon |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | TERMINAL BLOCK 12 POLE;12-CKT BARRIER STRIP |
| Item Number | 89612 |

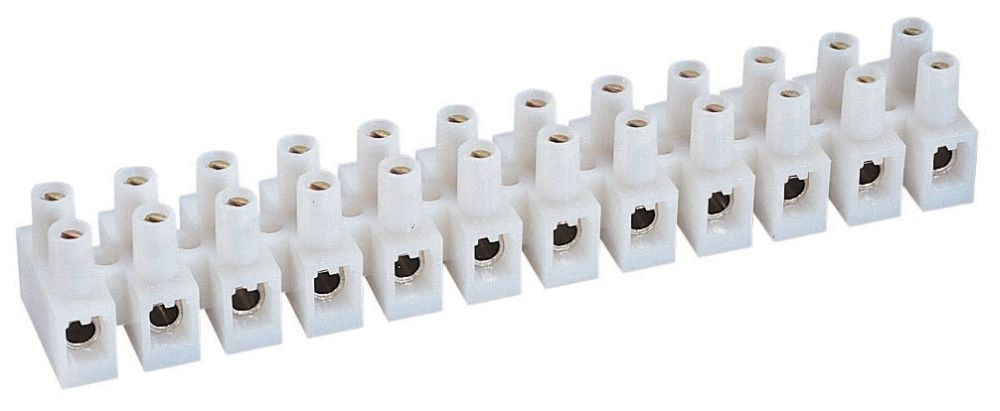

| Long Description | BARRIER STRIP, BARRIER TYPE; 5.54 INCH LENGTH X 0.937 INCH WIDTH X 0.748 INCH HEIGHT SIZE; WHITE COLOR; 22 TO 10 AWG (UL/CUL) WIRE SIZE; UL, CUL APPROVAL; 300 VOLT (UL/CUL) VOLTAGE RATING; 35 AMP (UL/CUL) CURRENT RATING; NO COVER TYPE |
| MSDS Form Number | * |
| Material | Plastic |
| Noun | * |
| Number Of Circuits | 12 |
| Product Description | 12-CKT BARRIER STRIP |
| Product Keywords | WEBREADY |
| Product Name | Terminal strips |
| ProductLine | IDEAL |
| Size | 5.54 Inch Length x 0.937 Inch Width x 0.748 Inch Height |
| Special Features | Features: UL Recognized And CUL Rated For 35A, 600V; Recessed Screws And Tubular Contacts; Connect Stripped Un-Terminated Solid Or Stranded Wire; Modular 12 Circuits Can Be Cut Into Smaller Sections; Plastic Housing Is UL Flame Rated To 94V-2; Rated Temperature To 105 Degrees C; Torque Rating Of 7.0 In-Lbs; Recessed Screws And Tubular Contacts Provide Added Safety And Help Prevent Short Circuits; Tubular Contacts Connect Stripped, Un-Terminated Solid Or Stranded Wire Directly To Each Contact Integrated Wire Protectors Prevent Twisting And Breakage Of Stranded Wire During Connection; Modular 12-Circuit Design Can Be Cut Into Smaller Sections,Or Stacked End-To-End Rugged Nylon Construction, UL 94V2; Operating Temperature Rated To 105C (221F) Recessed Screws And Tubular Contacts Provide Added Safety And Help Prevent Short Circuits Tubular Contacts Connect Stripped, Un-Terminated Solid Or Stranded Wire Directly To Each Contact Integrated Wire Protectors Prevent Twisting And Breakage Of Stranded Wire During Connection; Modular 12-Circuit Design Can Be Cut Into Smaller Sections,Or Stacked End-To-End; Rugged Nylon Construction, UL 94V2; Operating Temperature Rated To 105C (221F); Number Of Circuits: 12; Torque Rating: 7 IN-LB; Rated Temperature: 105 DEG C; Overall Height: 0.472 IN; Model: PA12DS; Electrical Ratings: 35A/300V UL/CUL |
| Standard | C/US UL Listed, RoHS |
| Temperature Rating | 105 Deg C |
| Terminal Type | Tubular Screw |
| Type | Barrier |
| UNSPSC | 39121407 |
| UPC | 78325089612 |
| Vendor Name | IDEAL INDUSTRIES INC |
| Vendor Number | 783250 |
| Vendor Short Name | IDEAL |
| Voltage Rating | 300/600 V;300 Volt (UL/CUL) |
| Wire Size | 22-10 AWG;22 to 10 AWG (UL/CUL) |
