| Manufacturer Name | ILSCO CORP |
| MfgPartNo | AK-6 |
| Additional Information | Size 0.75 Inch W x 1.88 Inch H; Torque Rating 165 Lb-Inch; Temperature Rating 90 Deg C |
| Approval | UL 670B, CSA |
| Base Price | 0.0000 |
| Catalog Number | AK-6 |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Aluminum/Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| Installation | Hex Head Split Bolt with Spacer Bar |
| InvoiceDescription | AL MEC (R)6-10 (T)6-10 T UL CSA;6AWG ALUM SPLIT BOLT |
| Item Number | 00830 |

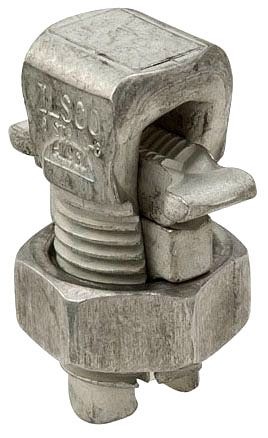

| Long Description | SPLIT BOLT, ELECTRO-TIN PLATED HEAT TREATED ALUMINUM ALLOY MATERIAL; 10 AWG SOLID MIN. RUN CONDUCTOR SIZE; 6 AWG STRANDED MAX. RUN CONDUCTOR SIZE; 10 AWG SOLID MIN. TAP CONDUCTOR SIZE; 6 AWG STRANDED MAX. TAP CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Electro-Tin Plated Heat Treated Aluminum Alloy |
| Maximum Run Conductor Size | 6 AWG Stranded |
| Maximum Tap Conductor Size | 6 AWG Stranded |
| Minimum Run Conductor Size | 10 AWG Solid |
| Minimum Tap Conductor Size | 10 AWG Solid |
| Model | AK |
| Noun | * |
| Number Of Conductors Ports Conductor Range Main Primary | 1 |
| Product Description | 6AWG ALUM SPLIT BOLT |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | ILSCO |
| UNSPSC | 39121408 |
| UPC | 78366900830 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
| Voltage Rating | 2000 V |
