| Manufacturer Name | ILSCO CORP |
| MfgPartNo | AU-600-2NS |
| Additional Information | Size 1-3/8 Inch H; Temperature Rating 90 Deg C; Packaging Quantity 3 |
| Approval | UL 453G, UL 486A/B, CSA |
| Base Price | 0.0000 |
| Catalog Number | AU-600-2NS |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Aluminum/Copper |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | AL MEC (2)600-2 9/16-1-3/4 2 M;ALCU 2COND LUG |
| Item Number | 00576 |

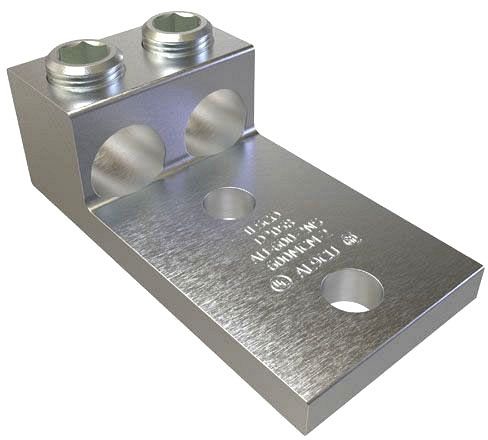

| Long Description | MECHANICAL LUG, CHAMFERED WIRE ENTRY TYPE; ELECTRO-TIN PLATED HIGH STRENGTH 6061-T6 ALUMINUM ALLOY MATERIAL; 4-11/16 INCH OVERALL LENGTH; 2 AWG MIN. CONDUCTOR SIZE; 600 KCMIL MAX. CONDUCTOR SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy |
| Maximum Conductor Size | 600 KCMIL |
| Minimum Conductor Size | 2 AWG |
| Model | AU |
| Noun | * |
| Number Of Conductors | 2 |
| Number Of Conductors Ports Conductor Range Main Primary | 2 |
| Number Of Pad Holes | 2 |
| Overall Length | 4-11/16 Inch |
| Pad Size | 3-5/16 Inch L x 2-13/32 Inch W x 7/16 Inch Thk |
| Pad Type | Straight |
| Product Description | ALCU 2COND LUG |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | ILSCO |
| Screw Type | 1/2 Inch Hex |
| Stud Size | 1/2 Inch |
| Type | Chamfered Wire Entry |
| UNSPSC | 39121408 |
| UPC | 78366900576 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
