ILSCO CSWS-1000-38

CU COM LUG

Page Loading...
ILSCO CORP
CU COM LUG

Mouse over image to zoom, click to enlarge

Description:
CU COM LUG

UPC:  78366965045

Part Number: CSWS-1000-38

UNSPSC: 39121448

Status:  UNKNOWN

Retail Price:  $191.05 / EA
Your Price:  $74.00 / EA


Quantity  EA

Specifications

Manufacturer Name ILSCO CORP
MfgPartNo CSWS-1000-38
Additional Information ROHS Compatible; Size 1.172 Inch ID x 1.5 Inch OD; Barrel Type Chamfered Entry; Temperature Rating 90 Deg C
Approval UL 453G, UL 467, UL 486A/B, CSA
Barrel Length 1.625 Inch
Barrel Type Standard
Base Price 0.0000
Brand Name SureCrimp [R]
Catalog Number CSWS-1000-38
Color White
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 1000 KCMIL
CountryOfOrigin US
DDCATEGORY 597
Die Index I-125
Directory CIS
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
InvoiceDescription CU CMP 1000 kcmil 13/32 T ULCSA SHORT B;CU COM LUG
Item Number 65045

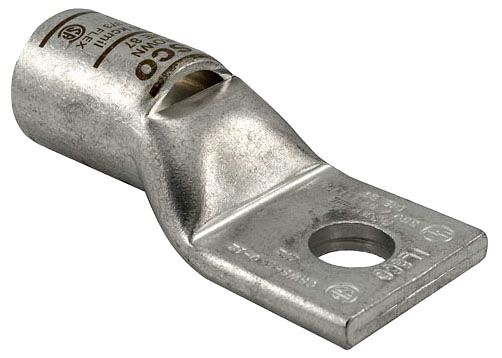

Long Description COMPRESSION LUG, SEAMLESS ELECTRO-TIN PLATED COPPER MATERIAL; WHITE COLOR; 3.525 INCH OVERALL LENGTH; 1.625 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 453G, UL 467, UL 486A/B, CSA APPROVAL; 35 KV VOLTAGE RATING; 1000 KCMIL CONDUCTOR SIZE
MSDS Form Number *
Material Seamless Electro-Tin Plated Copper
Model CSWS
Noun *
Number Of Pad Holes 1
Overall Length 3.525 Inch
Pad Size 0.875 Inch L x 2.169 Inch W x 0.328 Inch Thk
Product Description CU COM LUG
Product Keywords WEBREADY
Product Name Wire or cable compression connector
ProductLine ILSCO
Stud Size 3/8 Inch
UNSPSC 39121448
UPC 78366965045
Vendor Name ILSCO CORP
Vendor Number 783669
Vendor Short Name ILSCO
Voltage Rating 35 KV

Resources

CatalogNumber CSWS-1000-38
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
