| Manufacturer Name | ILSCO CORP |
| MfgPartNo | CSWS-1000-58 |
| Additional Information | INNER DIAMETER 1.172 INCH; OUTER DIAMETER 1.5 INCH; WITH CHAMFERED TYPE CABLE ENTRY |
| Approval | UL, CSA |
| Barrel Length | 1.625 INCH |
| Barrel Type | STANDARD |
| Base Price | 0.0000 |
| Brand Name | SureCrimp[R] |
| Catalog Number | CSWS-1000-58 |
| Color | WHITE |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | COPPER |
| Conductor Size | 1000 KCMIL |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Die Index | I-125 |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CU CMP 1000 kcmil 21/32 T ULCSA SHORT B;1HOLE LUG |
| Item Number | 65053 |

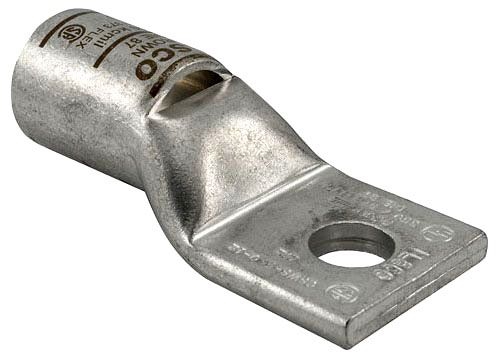

| Long Description | COMPRESSION LUG, SEAMLESS ELECTRO TIN PLATED COPPER MATERIAL; WHITE COLOR; 4.087 INCH OVERALL LENGTH; 1.625 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 35 KV VOLTAGE RATING; 1000 KCMIL CONDUCTOR SIZE; 5/8 INCH STUD SIZE |
| MSDS Form Number | * |
| Material | SEAMLESS ELECTRO TIN PLATED COPPER |
| Model | CSWS |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 4.087 INCH |
| Pad Size | 1.437 INCH L X 2.169 INCH W X 0.328 INCH THK |
| Product Description | 1HOLE LUG |
| Product Keywords | WEBREADY |
| Product Name | Wire or cable compression connector |
| ProductLine | ILSCO |
| Stud Size | 5/8 INCH |
| UNSPSC | 39121448 |
| UPC | 78366965053 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
| Voltage Rating | 35 KV |
