| Manufacturer Name | ILSCO CORP |
| MfgPartNo | CSWS-250-14 |
| Additional Information | ROHS Compatible; Size 0.593 Inch ID x 0.75 Inch OD; Barrel Type Chamfered Entry; Temperature Rating 90 Deg C |
| Approval | UL 453G, UL 467, UL 486A/B, CSA |
| Barrel Length | 1.063 Inch |
| Barrel Type | Standard |
| Base Price | 0.0000 |
| Brand Name | SureCrimp [R] |
| Catalog Number | CSWS-250-14 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 250 KCMIL |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Die Index | I-62 |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CU CMP 250 kcmil 9/32 T UL CSA;250KCMIL COM LUG |
| Item Number | 64065 |

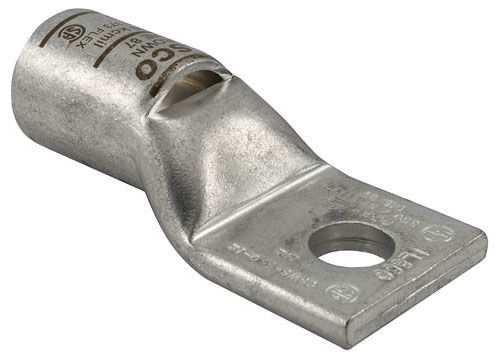

| Long Description | COMPRESSION LUG, SEAMLESS ELECTRO-TIN PLATED COPPER MATERIAL; YELLOW COLOR; 2.469 INCH OVERALL LENGTH; 1.063 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 453G, UL 467, UL 486A/B, CSA APPROVAL; 35 KV VOLTAGE RATING; 250 KCMIL CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Seamless Electro-Tin Plated Copper |
| Model | CSWS |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 2.469 Inch |
| Pad Size | 0.875 Inch L x 1.088 Inch W x 0.157 Inch Thk |
| Product Description | 250KCMIL COM LUG |
| Product Keywords | WEBREADY |
| Product Name | Wire or cable compression connector |
| ProductLine | ILSCO |
| Stud Size | 1/4 Inch |
| UNSPSC | 39121448 |
| UPC | 78366964065 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
| Voltage Rating | 35 KV |
