| Manufacturer Name | ILSCO CORP |
| MfgPartNo | CSWS-250-716 |
| Additional Information | RoHS Compliant; Size 0.593 Inch Inner Diameter x 0.75 Inch Outer Diameter; Stud Hole Diameter 0.468 Inch; Cable Entry Type Chamfered Entry; With Sight Hole; Temperature Rating 90 Deg C; Application Grounding and Bonding |
| Approval | UL E6207/467/453G/486A/B, CSA |
| Barrel Length | 1.063 Inch |
| Barrel Type | Standard |
| Base Price | 0.0000 |
| Brand Name | SureCrimp[R] |
| Catalog Number | CSWS-250-716 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 250 KCMIL |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Die Index | I-62 |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CU CMP 250 KCMIL 15/64 T UL CSA;2HL LUG |
| Item Number | 68926 |

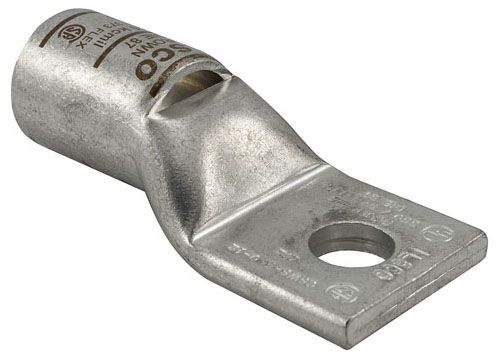

| Long Description | LUG, ELECTRO-TIN PLATED SEAMLESS COPPER MATERIAL; YELLOW COLOR; 2.594 INCH OVERALL LENGTH; 1.063 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL E6207/467/453G/486A/B, CSA APPROVAL; 35 KILOVOLT VOLTAGE RATING; 250 KCMIL CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Electro-Tin Plated Seamless Copper |
| Model | CSWS |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 2.594 Inch |
| Pad Size | 1 Inch Length x 1.088 Inch Width |
| Product Description | 2HL LUG |
| Product Keywords | WEBREADY |
| Product Name | Wire or cable compression connector |
| ProductLine | ILSCO |
| Stud Size | 7/16 Inch |
| UNSPSC | 39121448 |
| UPC | 78366968926 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
| Voltage Rating | 35 Kilovolt |
