| Manufacturer Name | ILSCO CORP |
| MfgPartNo | PB2-300 |
| Additional Information | RoHS Compliant; Overall Height 2-5/16 Inch; Voltage Rating 35 Kilovolt; Temperature Rating 90 Deg C; Number of Port 2 |
| Approval | UL 453G/486A/B, CSA |
| Base Price | 0.0000 |
| Catalog Number | PB2-300 |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | AL MEC 300-6 21/64 T UL;300MCM ALCU 2COND LUG |
| Item Number | 18420 |

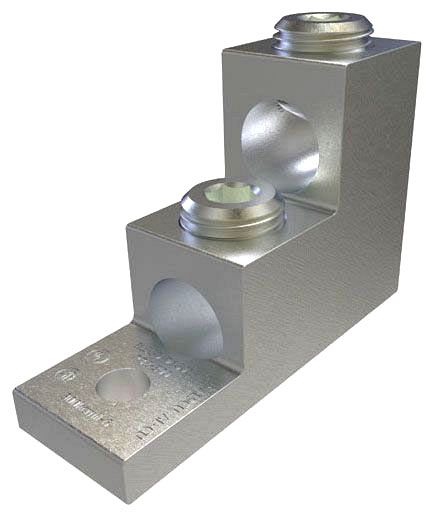

| Long Description | PANELBOARD LUG, CHAMFERED WIRE ENTRY/STACKED, DUAL RATED TYPE; ELECTRO TIN PLATED HIGH STRENGTH 6061-T6 ALUMINUM ALLOY MATERIAL; 3 INCH OVERALL LENGTH; 6 AWG MIN. CONDUCTOR SIZE; 300 KCMIL MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Electro Tin Plated High Strength 6061-T6 Aluminum Alloy |
| Maximum Conductor Size | 300 KCMIL |
| Minimum Conductor Size | 6 AWG |
| Model | PB |
| Noun | * |
| Number Of Conductors | 2 |
| Number Of Conductors Ports Conductor Range Main Primary | 2 |
| Number Of Pad Holes | 1 |
| Overall Length | 3 Inch |
| Pad Size | 1 Inch Length x 1 Inch Width x 5/16 Inch Thickness |
| Product Description | 300MCM ALCU 2COND LUG |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | ILSCO |
| Screw Type | 5/16 Inch Hex Head |
| Stud Size | 5/16 Inch |
| Type | Chamfered Wire Entry/Stacked, Dual Rated |
| UNSPSC | 39121408 |
| UPC | 78366918420 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
