| Manufacturer Name | ILSCO CORP |
| MfgPartNo | PBTS-4-1/0 |
| Additional Information | RoHS Compliant; Overall Dimension 2.92 Inch Length x 1.53 Inch Width x 1.63 Inch Height; Screw Size 3/16 Inch Hex; Current Rating 170 Amp; Type Insulated; Temperature Rating 90 Deg C, -45 Deg C (Cold) |
| Approval | UL 453G, UL 486A/B, CSA |
| Base Price | 0.0000 |
| Body Material | High Dielectric Strength Plastisol Insulated |
| Brand Name | NIMBUS [R] |
| Cable Entry | 1-Side |
| Catalog Number | PBTS-4-1/0 |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | MX |
| DDCATEGORY | 598 |
| Directory | CIS |
| Families | 598 |
| Family Description | Splicing & Terminating Kits |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | INSUL AL MECH (4) 1/0-14 SGL TUL CSA;4PRT INS TAP CONN |
| Item Number | 07928 |

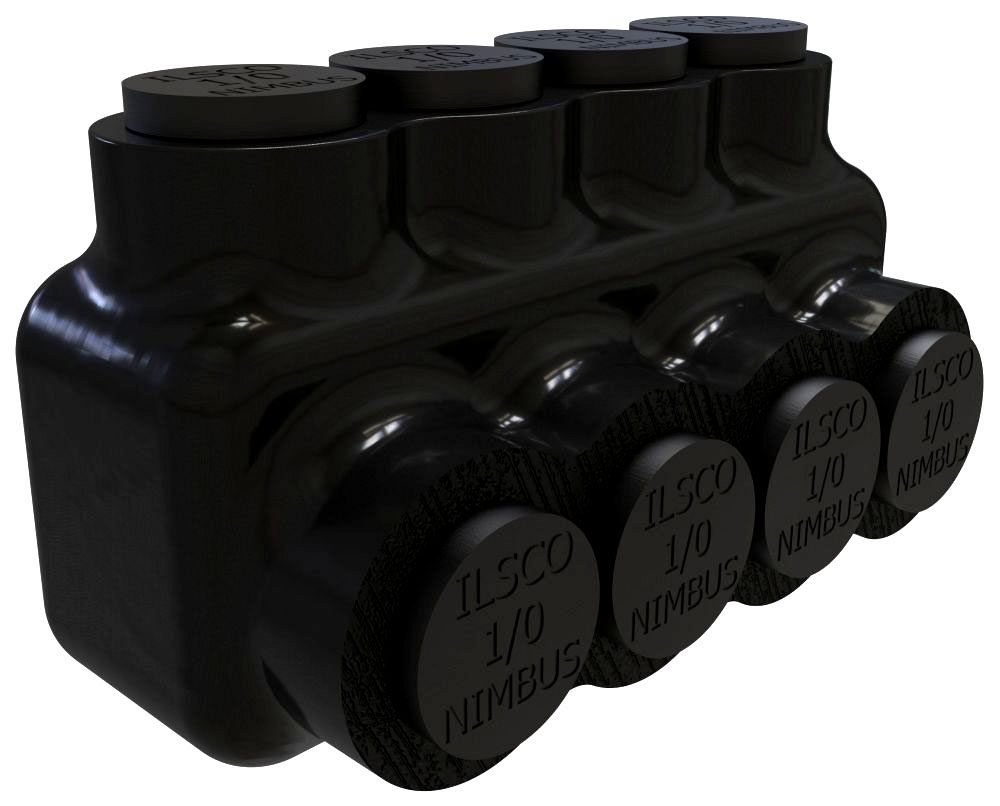

| Long Description | MULTI TAP CONNECTOR, 14 AWG MIN. CONDUCTOR SIZE; 1/0 AWG MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL 453G, UL 486A/B, CSA APPROVAL; 600 VOLT VOLTAGE RATING; HIGH DIELECTRIC STRENGTH PLASTISOL INSULATED BODY MATERIAL; 4 PORT(S) |
| MSDS Form Number | * |
| Maximum Conductor Size | 1/0 AWG |
| Minimum Conductor Size | 14 AWG |
| Model | PBTS |
| Noun | * |
| Number Of Conductors Ports Conductor Range Main Primary | 4 |
| Number Of Ports | 4 |
| Product Description | 4PRT INS TAP CONN |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | ILSCO |
| UNSPSC | 39121408 |
| UPC | 78366907928 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
| Voltage Rating | 600 Volt |
