| Manufacturer Name | ILSCO CORP |
| MfgPartNo | SLU-175 |
| Additional Information | Size 1-9/16 Inch H; Temperature Rating 90 Deg C; Packaging Quantity 25 |
| Approval | UL 453G, UL 486A/B, CSA |
| Base Price | 0.0000 |
| Catalog Number | SLU-175 |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | IN |
| DDCATEGORY | 597 |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CU MEC 3/0-4 13/32 B UL CSA OFFSET;4-3/0AWG COP TERM LUG |
| Item Number | 83279 |

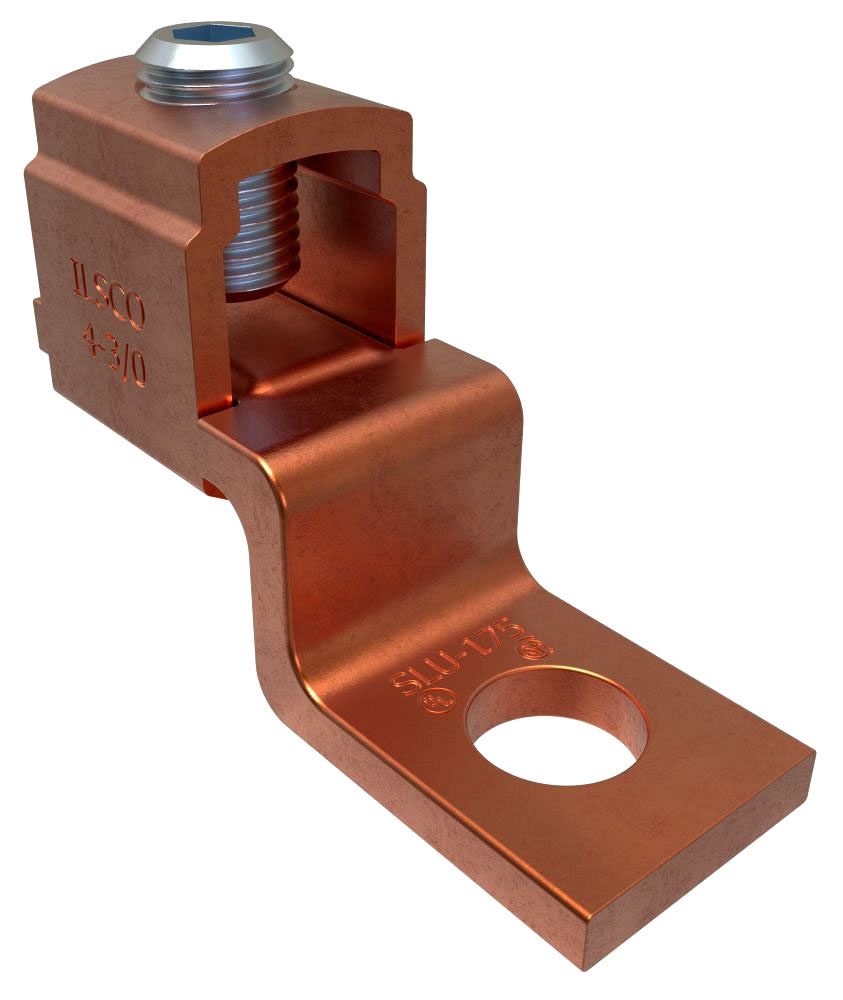

| Long Description | MECHANICAL LUG, V BOTTOM COLLAR TYPE; ELECTROLYTIC COPPER MATERIAL; 2-3/16 INCH OVERALL LENGTH; 4 AWG MIN. CONDUCTOR SIZE; 3/0 AWG MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 453G, UL 486A/B, CSA APPROVAL; 1 CONDUCTOR(S); 3/8 INCH STUD SIZE |
| MSDS Form Number | * |
| Material | Electrolytic Copper |
| Maximum Conductor Size | 3/0 AWG |
| Minimum Conductor Size | 4 AWG |
| Model | SLU |
| Noun | * |
| Number Of Conductors | 1 |
| Number Of Conductors Ports Conductor Range Main Primary | 1 |
| Number Of Pad Holes | 1 |
| Overall Length | 2-3/16 Inch |
| Pad Size | 15/16 Inch L x 3/4 Inch W |
| Pad Type | Offset |
| Product Description | 4-3/0AWG COP TERM LUG |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | ILSCO |
| Screw Type | 3/16 Inch Hex Socket |
| Stud Size | 3/8 Inch |
| Type | V Bottom Collar |
| UNSPSC | 39121408 |
| UPC | 78366983279 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
