| Manufacturer Name | ILSCO CORP |
| MfgPartNo | TA-2 |
| Additional Information | RoHS Compliant; Voltage Rating 35 Kilovolt; Height 3/4 Inch; Temperature Rating 90 Deg C |
| Approval | UL 467/486A/B, CSA |
| Base Price | 0.0000 |
| Catalog Number | TA-2 |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | MX |
| DDCATEGORY | 597 |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | AL MECH 2-14 17/64 T UL CSA;14-2 ALCU LUG |
| Item Number | 88774 |

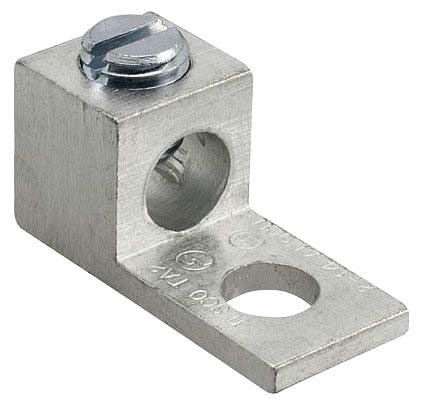

| Long Description | MECHANICAL LUG, CHAMFERED WIRE ENTRY TYPE; ELECTRO TIN PLATED 6061-T6 ALUMINUM ALLOY MATERIAL; 1-5/32 INCH OVERALL LENGTH; 14 AWG MIN. CONDUCTOR SIZE; 2 AWG MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL 467/486A/B, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Electro Tin Plated 6061-T6 Aluminum Alloy |
| Maximum Conductor Size | 2 AWG |
| Minimum Conductor Size | 14 AWG |
| Model | TA |
| Noun | * |
| Number Of Conductors | 1 |
| Number Of Pad Holes | 1 |
| Overall Length | 1-5/32 Inch |
| Pad Size | 11/16 Inch Length x 1/2 Inch Width x 7/64 Inch Thickness |
| Pad Type | Straight |
| Product Description | 14-2 ALCU LUG |
| Product Keywords | WEBREADY |
| Product Name | Mechanical connectors |
| ProductLine | ILSCO |
| Screw Type | Slotted |
| Stud Size | 1/4 Inch |
| Type | Chamfered Wire Entry |
| UNSPSC | 39121408 |
| UPC | 78366988774 |
| Vendor Name | ILSCO CORP |
| Vendor Number | 783669 |
| Vendor Short Name | ILSCO |
