ADVANCE / SIGNIFY ELECTRONICS
400W 480V MH BAL KT

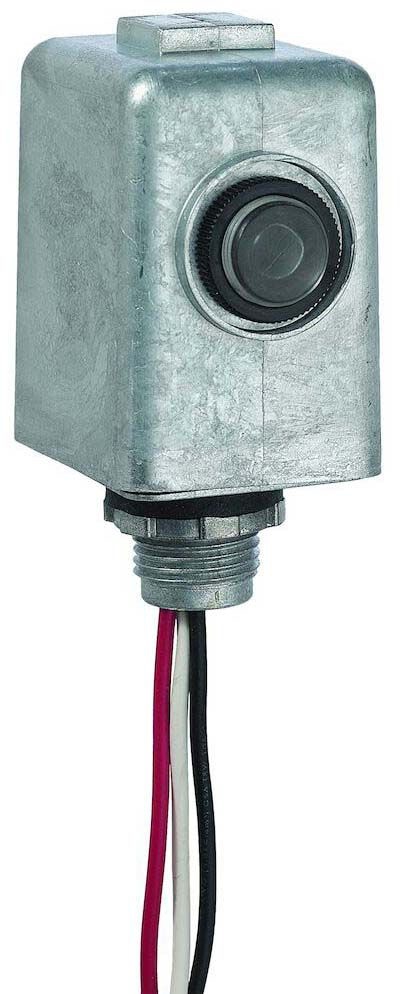

Mouse over image to zoom, click to enlarge

Description:
PHOTOCONTROL

UPC:  78108709650

Part Number: 193151

UNSPSC: 39101902

Status:  UNKNOWN

Retail Price:  $1,697.58 / EA
Call for price



Specifications

Manufacturer Name INTERMATIC INC
MfgPartNo EK4436SM
Additional Information RoHS Compliant; Current Rating 6 Amp (Electronic Ballast); Sensor Time Delay 2 to 5 Second; Photocell Type Silicon Diode; Color Gray; Photocontrol Sensor Location Side; Stem Material Metal; Applicable Standard Title 20 Compliant, ANSI C136.24
Application Dusk to Dawn Control;Outdoor Lighting Control
Approval UL (Canada and US)
Ballast Load Rating 1800 Volt Amp
Base Price 0.0000
Brand Name NIGHTFOX[TM]
Catalog Number EK4436SM
Commerce Sector Construction Materials
Commodity Code 74100
Commodity Description Lighting Controls
Connection Color coded Leads
CountryOfOrigin MX
DDCATEGORY 344
Directory CIS
Enclosure Metal Outdoor
Enclosure Material Die-Cast Zinc
Environmental Conditions Indoor/Outdoor/Raintight
Families 344
Family Description Lighting Controls
Frequency Rating 50/60 Hz
Image Location * Image
Industry ELX
InvoiceDescription NIGHTFOX EK Series Premium Metal Stem Mount Electronic Photocontrol, 120-277 V;PHOTOCONTROL
Item Number 14840
Long Description STEM MOUNT ELECTRONIC PHOTOCONTROL, ELECTRONIC, RELAY TYPE; 1.75 INCH WIDTH X 2.187 INCH DEPTH X 2.6875 INCH HEIGHT SIZE; DIE-CAST ZINC ENCLOSURE MATERIAL; UL (CANADA AND US) APPROVAL; OUTDOOR LIGHTING CONTROL APPLICATION
MSDS Form Number *
Model EK4000
Mounting Stem Fixed Mount;1/2 Inch-14 NPSM
Mounting Position Fixed, Stem
Noun *
Operating Cycles 10,000
Operating Temperature -40F to 158F
Power Consumption 0.4 max W
Product Description PHOTOCONTROL
Product Keywords WEBREADY
Product Name Photocontrols
ProductLine INT-MAT
Sensitivity 1.5 FC ON; 2.25 FC OFF
Sensor Silicon Sensor
Size 1.75 W x 2.25 D x 3.38 H Inch;1.75 Inch Width x 2.187 Inch Depth x 2.6875 Inch Height
Special Features Long Life, Electronic Photocell
Standard ANSI C136.24
Supply Voltage 120-277 VAC
Temperature Rating -40 to 158 Deg F
Terminal Type 18 AWG 9 Inch Wire Lead
Timing Range Dusk On - Dawn OFF
Tungsten Load Rating 1000 Watt
Turn OFF Light Level 4.5 FC
Turn ON Light Level 1.5 FC
Type Stem Mount Photocell;Electronic, Relay
UNSPSC 39121524
UPC 07827514840
Vendor Name INTERMATIC, INC
Vendor Number 078275
Vendor Short Name INT-MAT
Voltage Rating 120/277 Volt AC 50/60 Hertz (Input), 102/305 Volt AC (Operating)

Resources

CatalogNumber EK4436SM
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
