| Manufacturer Name | INTERMATIC INC |
| MfgPartNo | FD60MWC |
| Action | 1 x SPST |
| Additional Information | Voltage Rating 125/277 Volt AC 50/60 Hertz |
| Amperage Rating | 15 AMP |
| Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR;Residential;Indoor/Outdoor Lighting Control, Motor Control, Air Movement and Ventilation |
| Approval | UL (Canada and US), CSA (Canada and US) |
| Base Price | 0.0000 |
| Catalog Number | FD60MWC |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 44100 |
| Commodity Description | Electromechanical Time Switches |
| Connection | Teeter Type |
| Contact Configuration | 1 NO |
| Contact Current Rating | 20 Amp at 125 Volt AC, 10 Amp at 250/277 Volt AC (Resistive), 7 Amp 125 Volt AC (Tungsten) |
| Contact Power Rating | 1 HP at 125 Volt AC/2 HP at 250 Volt AC (Motor Load) |
| Contact Rating | 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive) |
| CountryOfOrigin | CAN;TN |
| DDCATEGORY | 2172 |
| Directory | CIS |
| Families | 2172 |
| Family Description | Electromechanical Time Switches |
| Finish | White |
| Frequency Rating | 50/60 HZ |
| Hinged | No |
| Image Location | * Image |
| Industry | ELX |

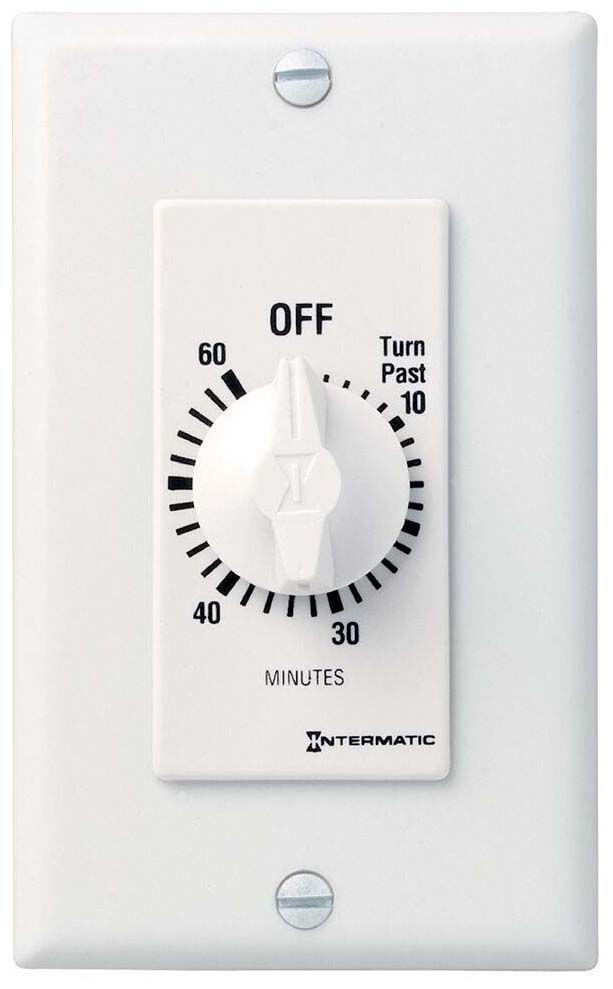

| InvoiceDescription | MECHANICAL TIMER 60 MINUTES WHITE;Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 60 Minute Max, Without Hold, White;60MIN SPR WND TMR |
| Item Number | 00506 |
| Long Description | TIMER, DECORATOR, ANALOG/MECHANICAL TYPE; 1.75 INCH WIDTH X 1.25 INCH DEPTH X 4.125 INCH HEIGHT SIZE; WHITE COLOR; WITHOUT HOLD OPERATION TYPE; UL (CANADA AND US), CSA (CANADA AND US) APPROVAL |
| MSDS Form Number | * |
| Material | Plastic |
| Model | FD |
| Motor Power | 1 HP @ 120 VAC, 2 HP @ 240 VAC |
| Mounting | Wall Mount;Wall |
| Noun | * |
| Number Of Poles | 1 |
| Operating Temperature | -40 to +104 DEG F, -40 to +40 DEG C;40 to 120 Deg F |
| Operation Type | Without Hold |
| Product Description | 60MIN SPR WND TMR |
| Product Keywords | WEBREADY |
| Product Name | Thermostats |
| ProductLine | INT-MAT |
| Size | 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM;1.75 Inch Width x 1.25 Inch Depth x 4.125 Inch Height |
| Special Features | Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in Single or Multi-Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Minimum of 0.085 IN Thread Engagement, Secure Teeter-Type Terminal, 1 Year Warranty |
| Standard | cCSAus Certified, UL Listed, UL Recognized, HVACR |
| Switch Type | SPST |
| Time Cycle | 60 Minute |
| Timer Duration | 60 MIN |
| Timing Range | 60 MIN |
| Type | Decorator Spring Wound Auto-Off;Decorator, Analog/Mechanical |
| UNSPSC | 41112209 |
| UPC | 07827500506 |
| Vendor Name | INTERMATIC, INC |
| Vendor Number | 078275 |
| Vendor Short Name | INT-MAT |
| Voltage Rating | 125 - 277 VAC |
| Wall Plate Color | White |
