| Manufacturer Name | INTERMATIC INC |
| MfgPartNo | GM40AV |
| Action | 1 x DPDT |
| Additional Information | RoHS Compliant; Wire Size 8 AWG; Mechanism Type Electromechanical, Wire Connection Type Screw Box Lug; Operating Humidity Rating 0 to 95 Percent RH (Non-Condensing); Electrical Life 50000 Operation at Full Load; Includes (96) Captive Tripper, Override Swi |
| Amperage Rating | 40 AMP |
| Application | General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural, Indoor/Outdoor;Refrigeration Merchandiser, Air Movement and Ventilation, Aeration, Septic Treatment, Generator Exercising |
| Approval | UL (Canada and US), CSA (Canada and US) |
| Base Price | 0.0000 |
| Catalog Number | GM40AV |
| Commerce Sector | Construction Materials |
| Commodity Code | 44100 |
| Commodity Description | Electromechanical Time Switches |
| Connection | Screw Box Lug |
| Contact Configuration | 2 NO/2 NC |
| Contact Rating | 40 AMP @ 120 - 277 VAC (Resistive NO), 30 AMP @ 120 VAC (Ballast NO), 20 AMP @ 277 VAC (Ballast NO), 15 AMP @ 120 VAC (Tungsten NO), 30 AMP @ 120 - 277 VAC (Resistive NC), 2 AMP @ 120 VAC (Tungsten NC), 10 AMP @ 277 VAC (Ballast NC) |
| CountryOfOrigin | MX |
| Current Rating | 30 Amp at 120 Volt AC/20 Amp at 277 Volt AC (NO)/10 Amp at 277 Volt AC (NC) (Ballast), 40 Amp (NO)/30 Amp (NC) at 120/277 Volt AC (Resistive), 16 Amp FLA/90 Amp LRA at 120 Volt AC/12 Amp FLA/52 Amp LRA at 208/277 Volt AC (NO), 12 Amp FLA/30 Amp LRA at 120 |
| DDCATEGORY | 2172 |
| Directory | CIS |
| Enclosure | NEMA 3R Plastic;NEMA 3R, Indoor/Outdoor |
| Environmental Conditions | 0 - 95 RH Non-Condensing |
| Families | 2172 |
| Family Description | Electromechanical Time Switches |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 40 A, Autovoltage General Purpose Time Control;24HR ELECTROMECH SW |
| Item Number | 12375 |

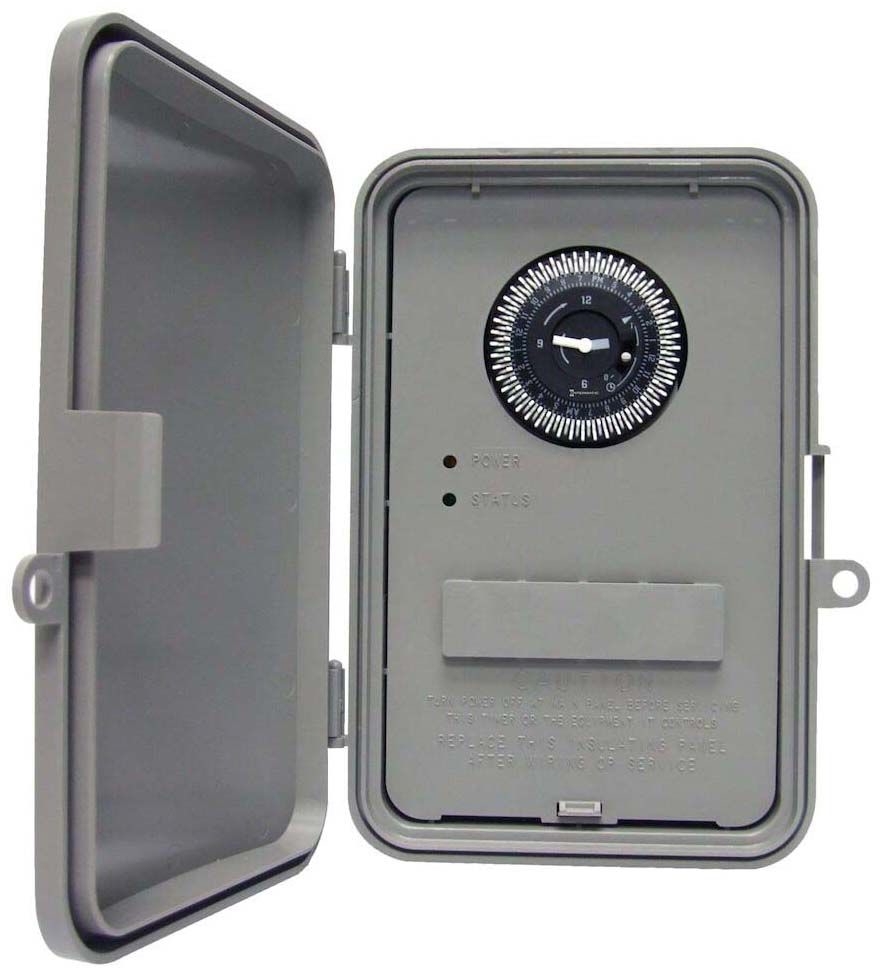

| Long Description | ELECTROMECHANICAL TIME SWITCH, 24 HOUR, AUTO VOLTAGE TYPE; PLASTIC (ENCLOSURE) MATERIAL; 6-39/64 INCH WIDTH X 3 INCH DEPTH X 8-7/8 INCH HEIGHT SIZE; 48 MAX. NUMBER OF OPERATIONS; 15 MINUTE MIN. OFF TIME; 15 MINUTE MIN. ON TIME |
| MSDS Form Number | * |
| Material | Plastic (Enclosure) |
| Maximum Number Of Operations | 48 |
| Minimum OFF Time | 15 Minute |
| Minimum ON Time | 15 Minute |
| Motor Power | 1 HP @ 120 VAC (16FLA and 90LRA-NO), 2 HP @ 208-277 VAC (12FLA and 52LRA-NO), 1 HP @ 120 VAC (12FLA and 30LRA-NC), 2 HP @ 240 VAC (10FLA and 30LRA-NC) |
| Mounting | Wall Mount |
| Noun | * |
| Number Of Poles | 2 |
| Operating Cycles | 50000 |
| Operating Temperature | -40 to +131 DEG F, -40 to +55 DEG C;-40 to 131 Deg F |
| Power Rating | 300 Volt Amp (NO) at 120/240 Volt AC (Pilot Duty), 1 HP/2 HP (NO/NC) Motor Load |
| Product Description | 24HR ELECTROMECH SW |
| Product Keywords | WEBREADY |
| Product Name | Time switch |
| ProductLine | INT-MAT |
| Size | 8.88 HEIGHT X 6.61 WIDTH X 3 DEPTH IN, 22.56 HEIGHT X 16.79 WIDTH X 7.62 DEPTH CM;6-39/64 Inch Width x 3 Inch Depth x 8-7/8 Inch Height |

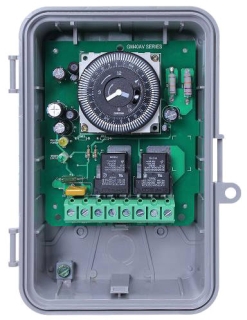

| Special Features | Features: Power and Status LED Indicators, 96 Captive Trippers Enable 48 ON/OFF Operations each Day, Automatically Adjusts Voltages between 120 and 277 VAC, Manual 3-Way OFF/AUTO/ON Override Switch, Easy-to-Set True Clockface, Mechanism Simply Snaps into many Enclosures, 1 Year Warranty |
| Standard | cULus Listed #E10694, HVACR |
| Switch Type | DPDT |
| Timer Duration | 24 HR |
| Timing Range | 15 MIN - 24 HR |
| Type | Electromechanical Auto-Voltage;24 Hour, Auto Voltage |
| UNSPSC | 39122208 |
| UPC | 07827512375 |
| Vendor Name | INTERMATIC, INC |
| Vendor Number | 078275 |
| Vendor Short Name | INT-MAT |
| Voltage Rating | 120 - 208/240/277 VAC;120/277 Volt AC 60 Hertz |
