| Manufacturer Name | KILLARK ELECTRIC MANUFACTURING CO. |
| MfgPartNo | ENY-2 |
| Additional Information | Overall Dimension 1-1/2 Inch Diameter x 4-3/16 Inch Height |
| Application | Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| CSA File Number | LR11716 |
| Catalog Number | ENY-2 |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 25220 |
| Commodity Description | Aluminum Sealing Bodies |
| Connection Type | Female/Female |
| CountryOfOrigin | IN |
| DDCATEGORY | 553 |
| Description Long | """ ENY Seal Fitting Aluminum, Female/Female" |
| Description Short | """ ENY Seal Fitting Aluminum, Female/Female" |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Enclosure | Class I Div 1 and 2 Group A B C D, Class I Zone 1 Group IIA IIB IIC, Class II Div 1 and 2 Group E F G, Class III |
| FEATURES Bullets | Engineered to latest 419 hub specifications for superior continuity and ingress protection;Integral bushings to protect conductors during installation;Large openings for ease of access to conductors for proper dam installation;Minimal turn radius for optimal spacing of both enclosures and conduit |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Finish Type | Powder Epoxy Paint |
| FV Hazardous Rating S | Class I, Div. 1 and 2;Class I, Zones 1 and 2;Class II, Div. 1 and 2;Class III, Div. 1 and 2 |
| FV Product Family | Fittings |
| Families | 553 |
| Family Description | Aluminum Sealing Bodies |
| Finish | Powder Epoxy Paint |
| Gross Weight With Packaging | 0.48 |
| Hazardous Rating S | Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Height | 0.1 in |
| Hub Size | "3/4""" |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "SEAL FTG 3/4"" AL FEMAL/FEMAL";3/4 EXPL-PRF SEAL |
| Item Number | 11111 |
| Length | 5 in |
| Long Description | SEALING FITTING, HUB TYPE; ELECTROSTATICALLY APPLIED POWDER COATED COPPER-FREE ALUMINUM MATERIAL; FEMALE/FEMALE CONNECTION TYPE; UL, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Electrostatically Applied Powder Coated Copper-Free Aluminum |
| Material Quality | Aluminum, Copper Free (less than 4/10 of 1%) |
| Model | EY |
| Mounting Position | Horizontal/Vertical |
| Noun | * |
| Product Description | 3/4 EXPL-PRF SEAL |
| Product Keywords | WEBREADY |

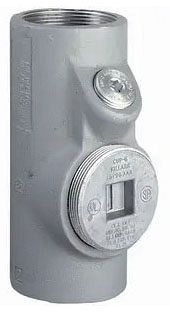

| Product Name | "ENY-2 - "" ENY Seal Fitting Aluminum, Female/Female" |
| ProductLine | KLRK |
| Series | ENY |
| Special Features | Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating. |
| Standard | UL, CSA |
| Trade Size | 3/4 Inch |
| Turning Radius | 1-9/32 Inch |
| Type | Sealing Fitting;Hub |
| UL File Number | E10514 |
| UNSPSC | 39131708 |
| UPC | 78393611111 |
| Vendor Name | KILLARK ELECTRIC MANUFACTURING CO. |
| Vendor Number | 783936 |
| Vendor Short Name | KLRK |
| Width | 10 in |
