| Manufacturer Name | KILLARK ELECTRIC MANUFACTURING CO. |
| MfgPartNo | SWB-5 |
| Additional Information | Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor |
| Application | Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors. |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | KILLARK |
| CSA File Number | LR11712 |
| Catalog Number | SWB-5 |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 57230 |
| Commodity Description | Junction, Surface, & Back Boxes |
| Construction | Deep |
| CountryOfOrigin | MX |
| DDCATEGORY | 1153 |

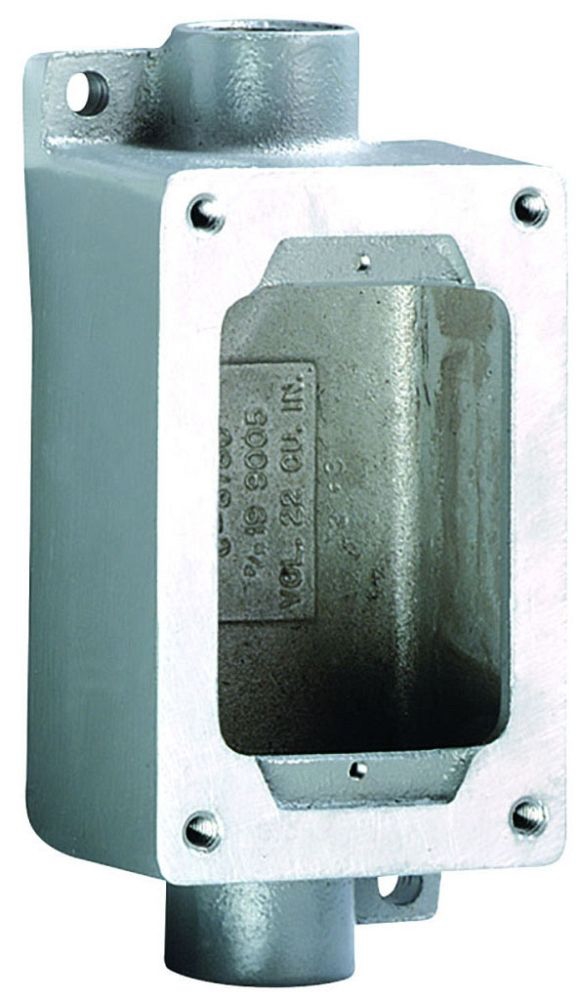

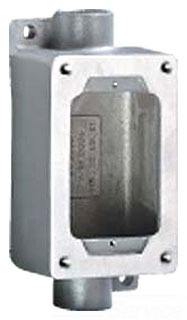

| Description Long | SWB Series - Aluminum Feed-Thru Single-Gang Device Body For Use With XCS/XS/XT Cover Assemblies - Hub Size 3/4 Inch - 5-7/8 Inch X 3 Inch X 2-1/4 Inch |
| Description Short | SWB Series - Aluminum Feed-Thru Single-Gang Device Body For Use With XCS/XS/XT Cover Assemblies - Hub Size 3/4 Inch - 5-7/8 Inch X 3 Inch X 2-1/4 Inch |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Enclosure | Aluminum enclosure;Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA, IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G |
| Environmental Conditions | Hazardous locations |
| FEATURES Bullets | Copper free cast aluminum alloy.;Ground flange joint between bolted cover and box provide required flame path.;Accepts both miniature and standard size push buttons.;Internal ground screw. |
| FV Hazardous Rating S | Class I, Div. 1 and 2;Class I, Zones 1 and 2;Class II, Div. 1 and 2;Class III, Div. 1 and 2 |
| FV Product Family | Controls |
| Families | 1153 |
| Family Description | Junction, Surface, & Back Boxes |
| Gross Weight With Packaging | 1.38 |
| Hazardous Rating S | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Hub Size | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "3/4"" 5 7/8X6 1/2X2 1/4 BDY FDTHRU";3/4 EXPL-PRF BOX |
| Item Number | 63005 |
| Long Description | CONTROL DEVICE BODY, FEED-THROUGH TYPE; CAST COPPER-FREE ALUMINUM ALLOY MATERIAL; 3 INCH WIDTH X 2-1/4 INCH DEPTH X 5-7/8 INCH HEIGHT SIZE; CONTROL STATION EXTERNAL SEALING REQUIRED USED ON; 3/4 INCH HUB SIZE; 2 HUB(S); 1 GANG(S); UL, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Aluminum, Copper Free (less than 4/10 of 1%);Cast Copper-Free Aluminum Alloy |
| Model | SWB |
| Mounting | Wall;Lug |
| Noun | * |
| Number Of Gangs | 1 |
| Number Of Hubs | 2 |
| Product Description | 3/4 EXPL-PRF BOX |
| Product Keywords | WEBREADY |
| Product Name | SWB Series - Feed-Thru Single-Gang Device Body- Hub Size 3/4 Inch |
| ProductLine | KLRK |
| Series | SWB |
| Size | 7.875 in x 3.5 in x 3.5 in;3 Inch Width x 2-1/4 Inch Depth x 5-7/8 Inch Height |
| Special Features | Killark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The SWB is offered in a wide variety of configurations from ? to 1? dead end and feed through for single double and triple gang to multi gang options with up to 15 cavities for XCS and XS Cover Assemblies. |
| Standard | UL, CSA |
| Type | Aluminum Device Body;Feed-Through |
| UL File Number | E53360 |
| UNSPSC | 39122216 |
| UPC | 78393663005 |
| Used On | Control Station External Sealing Required |
| Vendor Name | KILLARK ELECTRIC MANUFACTURING CO. |
| Vendor Number | 783936 |
| Vendor Short Name | KLRK |
