| Manufacturer Name | LITTELFUSE INC |
| MfgPartNo | 314001P |
| Additional Information | Lead Free; Cap Material Nickel-Plated Brass; Lead Material Tin-Plated Copper; Maximum Operating Temperature Rating 125 Deg C; Application Used as Supplementary Protection in Appliance or Utilization Equipment to Provide individual Protection for Component |
| Amperage Rating | 70 A |
| Application | General Purpose |
| Approval | UL, CSA, CE, PSE |
| Base Price | 0.0000 |
| Brand Name | Littelfuse;POWR-GARD [R] |
| Catalog Number | 314001P |
| Characteristics | Fast Acting |
| Commerce Sector | Construction Materials |
| Commodity Code | 61200 |
| Commodity Description | Small Dimension Fuses |
| CountryOfOrigin | CA |
| Current Rating | 1 Ampere |
| DDCATEGORY | 281 |
| Diameter | 0.25 Inch |
| Directory | CIS |
| Families | 281 |
| Family Description | Small Dimension Fuses |

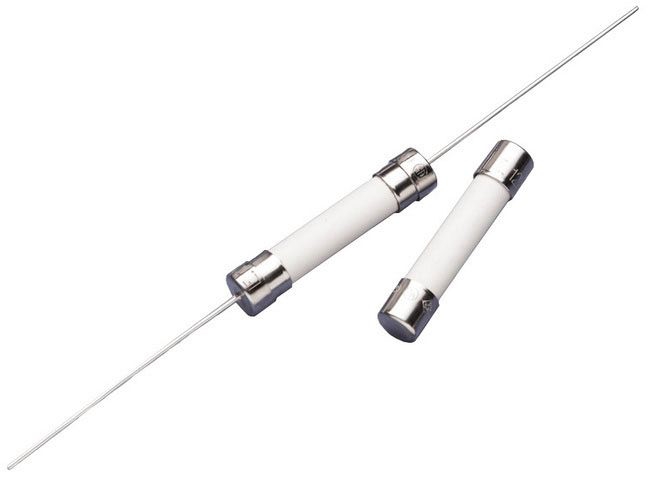

| Image Location | * Image |
| Industry | ELX |
| Interrupting Rating | 100 Ampere at 250 VAC, 10000 Ampere at 125 VAC/VDC |
| InvoiceDescription | FAST-ACTING 3AB TYPE CERAMIC 1A;250V SMALL DIM FUSE |
| Item Number | 92383 |
| Length | 1.25 Inch |
| Long Description | CARTRIDGE FUSE, MINIATURE CERAMIC CARTRIDGE TYPE; 1.25 INCH; UL, CSA, CE, PSE APPROVAL; 250 VAC VOLTAGE RATING; 0.25 INCH DIAMETER; 100 AMPERE AT 250 VAC, 10000 AMPERE AT 125 VAC/VDC INTERRUPTING RATING; 1 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Model | 314 |
| Noun | * |
| Product Description | 250V SMALL DIM FUSE |
| Product Keywords | WEBREADY |
| Product Name | Power fuse |
| ProductLine | L-FSE |
| Special Features | Economical/low interrupt |
| Standard | Standard 248-9 UL Listed/CSA |
| Sub Brand | POWR-GARD NLS Series |
| Type | Class K5;Miniature Ceramic Cartridge |
| UNSPSC | 39121627 |
| UPC | 07945892383 |
| Vendor Name | LITTELFUSE INC |
| Vendor Number | 079458 |
| Vendor Short Name | L-FSE |
| Voltage Rating | 250 VAC |
