L-FSE 314006P

FAST-ACTING 3AB TYPE CERAMIC 6A

Page Loading...
LITTELFUSE INC
FAST-ACTING 3AB TYPE CERAMIC 6A

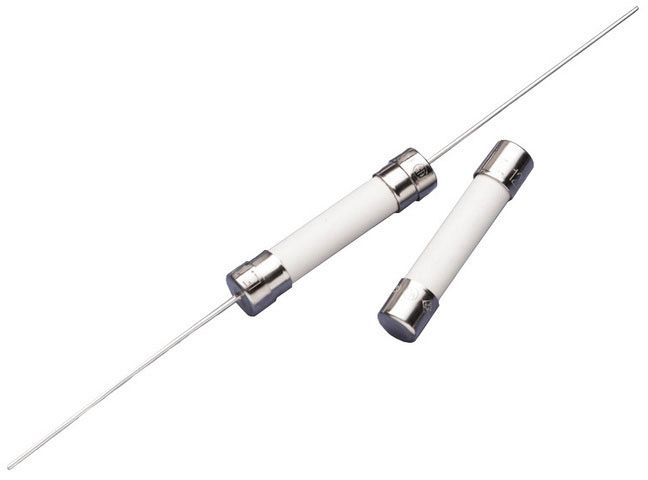

Mouse over image to zoom, click to enlarge

Description:
FAST-ACTING 3AB TYPE CERAMIC 6A

UPC:  07945892398

Part Number: 314006P

UNSPSC: 39121627

Status:  UNKNOWN

Retail Price:  $11.46 / EA
Your Price:  $4.97 / EA


Quantity  EA

Specifications

Manufacturer Name LITTELFUSE INC
MfgPartNo 314006P
Additional Information Lead Free; Cap Material Nickel-Plated Brass; Lead Material Tin-Plated Copper; Maximum Operating Temperature Rating 125 Deg C; Application Used as Supplementary Protection in Appliance or Utilization Equipment to Provide individual Protection for Component
Amperage Rating 500 Amps
Application General Purpose
Approval UL, CSA, CE, PSE, IC
Base Price 0.0000
Brand Name POWR-GARD [R]
Catalog Number 314006P
Characteristics Fast Acting
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
CountryOfOrigin CA
Current Rating 6 Ampere
DDCATEGORY 281
Diameter 0.25 Inch
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupting Rating 750 Ampere at 250 VAC, 10000 Ampere at 125 VAC/VDC
InvoiceDescription FAST-ACTING 3AB TYPE CERAMIC 6A;250V SMALL DIM FUSE
Item Number 92398
Length 1.25 Inch
Long Description CARTRIDGE FUSE, MINIATURE CERAMIC CARTRIDGE TYPE; 1.25 INCH; UL, CSA, CE, PSE, IC APPROVAL; 250 VAC VOLTAGE RATING; 0.25 INCH DIAMETER; 750 AMPERE AT 250 VAC, 10000 AMPERE AT 125 VAC/VDC INTERRUPTING RATING; 6 AMPERE CURRENT RATING
MSDS Form Number *
Model 314
Noun *
Product Description FAST-ACTING 3AB TYPE CERAMIC 6A
Product Keywords WEBREADY
Product Name Power fuse
ProductLine L-FSE
Special Features Economical/low interrupt
Standard Standard 248-9 UL Listed/CSA
Type Class K5;Miniature Ceramic Cartridge
UNSPSC 39121627
UPC 07945892398
Vendor Name LITTELFUSE INC
Vendor Number 079458
Vendor Short Name L-FSE
Voltage Rating 250 VAC

Resources

CatalogNumber 314006P
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
