| Manufacturer Name | LITTELFUSE INC |
| MfgPartNo | JTD005 |
| Additional Information | Application Fused Combination Motor Controllers to Provide IEC Type II (No Damage) Motor Branch-Circuit Short-Circuit and Ground Fault Protection, Motor Control Centers Transformer Protection, Protection for UL Listed Series-Rated Molded Case Circuit Brea |
| Amperage Rating | 5 A |
| Application | Motor Control Centers |
| Approval | UL 248-8, CSA, CE |
| Base Price | 0.0000 |
| Brand Name | Littelfuse;POWR-GARD [R], POWR-PRO [R], SLO-BLO [R] |
| Catalog Number | JTD005 |
| Characteristics | Time Delay |
| Commerce Sector | Construction Materials |
| Commodity Code | 61130 |
| Commodity Description | Current Limiting Fuses |
| CountryOfOrigin | MX |
| Current Rating | 5 Ampere |
| DDCATEGORY | 582 |
| Diameter | 13/16 Inch |
| Directory | CIS |
| Families | 582 |
| Family Description | Current Limiting Fuses |
| Image Location | * Image |
| Industry | ELX |
| Interrupting Rating | 200000 Ampere (Symmetrical) |
| InvoiceDescription | FUS 600V T/D CLASS J 5A;POWER FUSE |
| Item Number | 20206 |
| Length | 2-1/4 Inch |

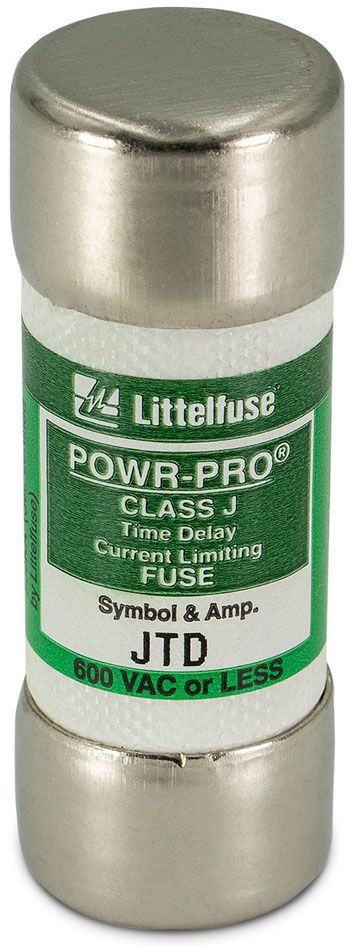

| Long Description | POWER FUSE, CLASS J TYPE; 2-1/4 INCH; UL 248-8, CSA, CE APPROVAL; 600 VAC VOLTAGE RATING; 13/16 INCH DIAMETER; 200000 AMPERE (SYMMETRICAL) INTERRUPTING RATING; 5 AMPERE CURRENT RATING; FERRULE TERMINAL TYPE; TIME DELAY CHARACTERISTICS |
| MSDS Form Number | * |
| Model | JTD |
| Noun | * |
| Product Description | POWER FUSE |
| Product Keywords | WEBREADY |
| Product Name | Midget fuses |
| ProductLine | L-FSE |
| Special Features | Time-Delay |
| Standard | Standard 248-8 UL Listed/CSA |
| Sub Brand | POWR-GARD JTD Series |
| Terminal Type | Ferrule |
| Type | Class J |
| UNSPSC | 39121609 |
| UPC | 07945820206 |
| Vendor Name | LITTELFUSE INC |
| Vendor Number | 079458 |
| Vendor Short Name | L-FSE |
| Voltage Rating | 600 VAC |
