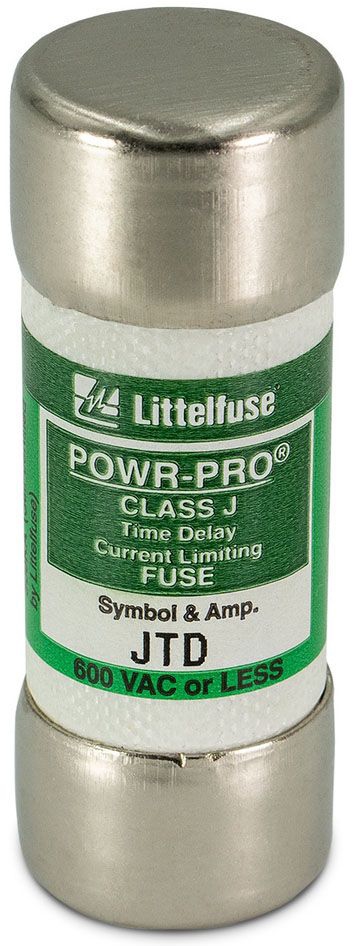

L-FSE JTD05.6

FUS 600V T/D CLASS J 5.6A

Page Loading...
LITTELFUSE INC
FUS 600V T/D CLASS J 5.6A

Mouse over image to zoom, click to enlarge

Description:
FUS 600V T/D CLASS J 5.6A

UPC:  07945805365

Part Number: JTD05.6

UNSPSC: 39121606

Status:  UNKNOWN

Retail Price:  $84.10 / EA
Your Price:  $28.04 / EA


Quantity  EA

Specifications

Manufacturer Name LITTELFUSE INC
MfgPartNo JTD05.6
Additional Information Application Fused Combination Motor Controllers to Provide IEC Type II (No Damage) Motor Branch-Circuit Short-Circuit and Ground Fault Protection, Motor Control Centers Transformer Protection, Protection for UL Listed Series-Rated Molded Case Circuit Brea
Amperage Rating 5.6 A
Application Motor Control Centers
Approval UL 248-8, CSA, CE
Base Price 0.0000
Brand Name POWR-GARD [R], POWR-PRO [R], SLO-BLO [R]
Catalog Number JTD05.6
Characteristics Time Delay
Commerce Sector Construction Materials
Commodity Code 61130
Commodity Description Current Limiting Fuses
CountryOfOrigin MX
Current Rating 5.6 Ampere
DDCATEGORY 582
Diameter 13/16 Inch
Directory CIS
Families 582
Family Description Current Limiting Fuses
Image Location * Image
Industry ELX
Interrupting Rating 200000 Ampere (Symmetrical)
InvoiceDescription FUS 600V T/D CLASS J 5.6A;5-6/10A 600V TD FUSE
Item Number 05365
Length 2-1/4 Inch
Long Description POWER FUSE, CLASS J TYPE; 2-1/4 INCH; UL 248-8, CSA, CE APPROVAL; 600 VAC VOLTAGE RATING; 13/16 INCH DIAMETER; 200000 AMPERE (SYMMETRICAL) INTERRUPTING RATING; 5.6 AMPERE CURRENT RATING; FERRULE TERMINAL TYPE; TIME DELAY CHARACTERISTICS
MSDS Form Number *
Model JTD
Noun *
Product Description FUS 600V T/D CLASS J 5.6A
Product Keywords WEBREADY
Product Name Cartridge fuses
ProductLine L-FSE
Special Features Time-Delay
Standard Standard 248-8 UL Listed/CSA
Terminal Type Ferrule
Type Class J
UNSPSC 39121606
UPC 07945805365
Vendor Name LITTELFUSE INC
Vendor Number 079458
Vendor Short Name L-FSE
Voltage Rating 600 VAC

Resources

CatalogNumber JTD05.6
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
