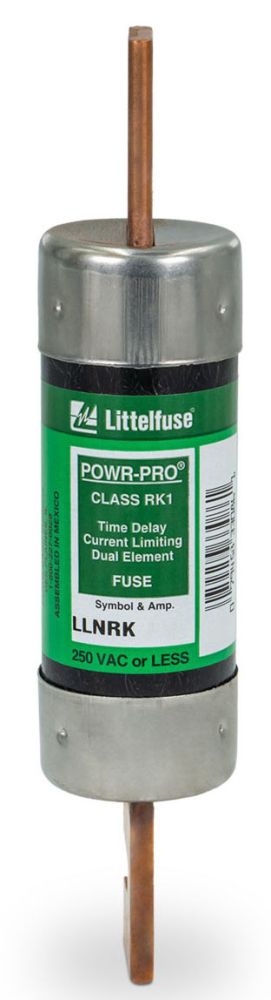

L-FSE LLNRK200

FUS 250V T/D CLASS RK1 200A

Page Loading...
LITTELFUSE INC
FUS 250V T/D CLASS RK1 200A

Mouse over image to zoom, click to enlarge

Description:
FUS 250V T/D CLASS RK1 200A

UPC:  07945833088

Part Number: LLNRK200

UNSPSC: 39121627

Status:  UNKNOWN

Retail Price:  $301.76 / EA
Your Price:  $201.18 / EA


Quantity  EA

Specifications

Manufacturer Name LITTELFUSE INC
MfgPartNo LLNRK200
Additional Information Application All General-Purpose Circuit, Motors, Transformers, Solenoids, Fluorescent Lighting, All System Components with High In-Rush Current
Amperage Rating 200 Amp
Application All general purpose circuits
Approval UL 248-12, CSA, QPL-WF-1814, CE
Base Price 0.0000
Brand Name POWR-GARD [R], POWR-PRO [R], SLO-BLO [R]
Catalog Number LLNRK200
Characteristics Dual Element, Time Delay
Commerce Sector Construction Materials
Commodity Code 61120
Commodity Description Dual Element Fuses
CountryOfOrigin MX
Current Rating 200 Ampere
DDCATEGORY 581
Diameter 1-19/32 Inch
Directory CIS
Families 581
Family Description Dual Element Fuses
Image Location * Image
Industry ELX
Interrupting Rating 200000 Ampere (Symmetrical), 300000 Ampere (Symmetrical, Self-Certified), 20000 Ampere (DC)
InvoiceDescription FUS 250V T/D CLASS RK1 200A;250V RK1 TD FUSE
Item Number 33088
Length 7-1/8 Inch
Long Description POWER FUSE, CLASS RK1 TYPE; 7-1/8 INCH; UL 248-12, CSA, QPL-WF-1814, CE APPROVAL; 250 VAC/125 VDC VOLTAGE RATING; 1-19/32 INCH DIAMETER; 200000 AMPERE (SYMMETRICAL), 300000 AMPERE (SYMMETRICAL, SELF-CERTIFIED), 20000 AMPERE (DC) INTERRUPTING RATING
MSDS Form Number *
Model LLNRK
Noun *
Product Description FUS 250V T/D CLASS RK1 200A
Product Keywords WEBREADY
Product Name Power fuse
ProductLine L-FSE
Special Features Time-Delay
Standard Standard 248-12 UL Listed/CSA
Terminal Type Blade
Type Class RK1
UNSPSC 39121627
UPC 07945833088
Vendor Name LITTELFUSE INC
Vendor Number 079458
Vendor Short Name L-FSE
Voltage Rating 250 VAC/125 VDC
