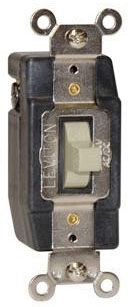

LEV 1081-I

IV SW TGL MOMENTARY LV 3A24V AC/DC

Page Loading...
LEVITON MFG CO.
IV SW TGL MOMENTARY LV 3A24V AC/DC

Mouse over image to zoom, click to enlarge

Description:
IV SW TGL MOMENTARY LV 3A24V AC/DC

UPC:  07847735806

Part Number: 1081-I

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $61.99 / EA
Your Price:  $36.97 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 1081-I
Action SPDT
Additional Information Grounding Type Self-Grounding; Material Thermoplastic Polyester (Body/Cover), Steel (Strap), Thermoplastic Nylon (Actuator), Polyester (Base), Silver Alloy (Contact), Brass (Terminal Screw), Polycarbonate (Frame); Temperature Rating -40 to 65 Deg C; Appli
Amperage Rating 3 A
Application Commercial;Extra Heavy Duty, Industrial, Specification Grade
Approval UL
Base Price 0.0000
Catalog Number 1081-I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Back Wired;Side Wired
Contact Configuration SPDT
CountryOfOrigin MX
Current Rating 3 Amp
DDCATEGORY 572
Decorative Color Ivory
Depth 1.95 in
Directory CIS
Enclosure Polyester
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 572
Family Description General Purpose Switches
Handle Type Toggle
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription IV SW TGL MOMENTARY LV 3A24V AC/DC;3A 24V MOM CONT SW
Item Number 35806
Long Description AC SWITCH, 1.38 INCH WIDTH X 1.26 INCH DEPTH X 4.06 INCH HEIGHT SIZE; IVORY COLOR; SPDT CONTACT CONFIGURATION; MOMENTARY CENTER-OFF OPERATION TYPE; TOGGLE HANDLE TYPE; UL APPROVAL; EXTRA HEAVY DUTY, INDUSTRIAL, SPECIFICATION GRADE APPLICATION
MSDS Form Number *
Mounting Box
Noun *
Number Of Poles 1
Operating Temperature Maximum 149 F
Operating Temperature Minimum -40 F
Operation Type Momentary Center-Off
Product Description IV SW TGL MOMENTARY LV 3A24V AC/DC
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 1.38 Inch Width x 1.26 Inch Depth x 4.06 Inch Height
Switch Type Toggle
Type Toggle Switch
UNSPSC 39122211
UPC 07847735806
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 24 VAC/VDC;24 Volt AC/DC
Wall Plate Included No
Width 1.37 in
Wiring Back/Side

Resources

CatalogNumber 1081-I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
