LEV 1201-PLR

RD SW TGL LITED SP PILOT 15A120/277VAC

Page Loading...
LEVITON MFG CO.
RD SW TGL LITED SP PILOT 15A120/277VAC

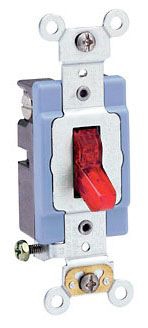

Mouse over image to zoom, click to enlarge

Description:
RD SW TGL LITED SP PILOT 15A120/277VAC

UPC:  07847722352

Part Number: 1201-PLR

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $43.97 / EA
Your Price:  $15.64 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 1201-PLR
Action SP
Additional Information OPERATING TEMPERATURE -40 TO 65 DEG C
Amperage Rating 15 A
Application Commercial;Industrial, Specification Grade
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 1201-PLR
Color Red
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Back Wired;Side Wired
CountryOfOrigin MX
Current Rating 15 Amp
DDCATEGORY 572
Depth 1.6 in
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 572
Family Color Red
Family Description General Purpose Switches
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription RD SW TGL LITED SP PILOT 15A120/277VAC;SP 15A 120V TGL SW
Item Number 22352
Long Description AC SWITCH, ILLUMINATED TOGGLE, PILOT LIGHT TYPE; THERMOPLASTIC (BODY), POLYCARBONATE (TOGGLE) MATERIAL; 1.31 INCH WIDTH X 4.06 INCH HEIGHT SIZE; RED COLOR; 1-POLE OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL
MSDS Form Number *
Material Thermoplastic (Body), Polycarbonate (Toggle)
Mounting Box
Noun *
Number Of Poles 1
Operating Temperature Maximum 149 F
Operating Temperature Minimum -40 F
Operation Type 1-Pole
Power Rating 1/2 HP at 120 Volt AC
Product Description RD SW TGL LITED SP PILOT 15A120/277VAC
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 1.31 Inch Width x 4.06 Inch Height
Standard ANSI (C-73);CSA C22.2 No. 111 (File 152105);NEMA (WD-1 and WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WS896E (File E7458);UL Standard (UL 20)
Switch Type Toggle
Type Toggle Switch;Illuminated Toggle, Pilot Light
UNSPSC 39122211
UPC 07847722352
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120 V;120 Volt AC
Wall Plate Included No
Width 1.31 in
Wiring Back, Side

Resources

CatalogNumber 1201-PLR
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
