LEV 1224-2

BR SW TGL FLUSH 4W 20A120/277VAC

Page Loading...
LEVITON MFG CO.
BR SW TGL FLUSH 4W 20A120/277VAC

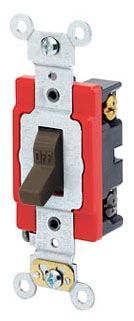

Mouse over image to zoom, click to enlarge

Description:
BR SW TGL FLUSH 4W 20A120/277VAC

UPC:  07847735971

Part Number: 1224-2

UNSPSC: 39122211

Status:  UNKNOWN

Retail Price:  $103.72 / EA
Your Price:  $31.65 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 1224-2
Actuator Toggle
Additional Information Operating Temperature -40 to 65 Deg C; Grounding Type Self Grounding; Strap Material Galvanized Steel; Contact Material Silver-Alloy; Wire Size 14 to 10 AWG (Back), 14 to 12 AWG (Side)
Amperage Rating 20 A
Application Commercial;Industrial, Specification Grade
Approval UL 20, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Leviton
Catalog Number 1224-2
Color Brown
Commerce Sector Construction Materials
Commodity Code 51100
Commodity Description General Purpose Switches
Connection Back Wired;Side Wired
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 572
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 572
Family Description General Purpose Switches
Image Location * Image
Industry ELX
InvoiceDescription 20A 120 277V 4WAY TGLE SW BROWN;4WY 20A120/277V TGL SW
Item Number 35971
Long Description AC SWITCH, TOGGLE TYPE; THERMOPLASTIC (BODY), POLYCARBONATE (TOGGLE) MATERIAL; 1.31 INCH W X 1.6 INCH D X 4.06 INCH H SIZE; BROWN COLOR; 4-WAY OPERATION TYPE; UL 20, CSA C22.2, NOM 057 APPROVAL; INDUSTRIAL, SPECIFICATION GRADE APPLICATION
MSDS Form Number *
Material Thermoplastic (Body), Polycarbonate (Toggle)
Model 1224
Mounting Box
Noun *
Number Of Poles 2
Operating Temperature -40 to +65 DEG C
Operation Type 4-Way
Power Rating 1 HP at 120 V, 2 HP at 240 V
Product Description BR SW TGL FLUSH 4W 20A120/277VAC
Product Keywords WEBREADY
Product Name Toggle switch
ProductLine LEV
Size 46 H x 1.31 W x 13 D IN;1.31 Inch W x 1.6 Inch D x 4.06 Inch H
Standard NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant
Type Toggle Switch;Toggle
UNSPSC 39122211
UPC 07847735971
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/277 VAC
Wall Plate Included No
Wiring Back, Side

Resources

CatalogNumber 1224-2
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
