LEV 1306

DO NOT USE IN POINTE-CLAIRE

Page Loading...
LEVITON MFG CO.
DO NOT USE IN POINTE-CLAIRE

Mouse over image to zoom, click to enlarge

Description:
DO NOT USE IN POINTE-CLAIRE

UPC:  07847716840

Part Number: 1306

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $12.55 / EA
Your Price:  $5.25 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 1306
Additional Information Application Residential
Amperage Rating 15 A
Application Commercial
Approval UL, CSA, NOM 057
Base Price 0.0000
Body Material Thermoplastic
Brand Name Leviton
Catalog Number 1306
Color Black
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 1-15R
Connection Wire Lead
CountryOfOrigin MX
DDCATEGORY 573
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Finish Black
Image Location * Image
Industry ELX
Installation 0.97 Inch x 0.52 Inch Opening, Panel
InvoiceDescription FIXTURE RECEPT PKD;BLK SNAPIN OUTLET-NM1-15R
Item Number 16840

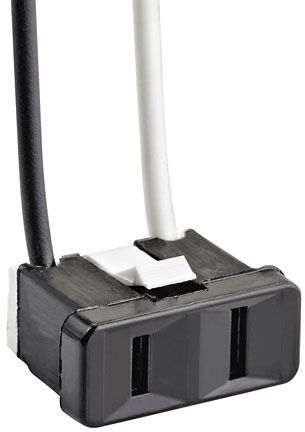

Long Description SNAP IN RECEPTACLE, POLARIZED TYPE; BLACK FINISH; 0.97 INCH X 0.52 INCH OPENING, PANEL INSTALLATION; 1-15R CONFIGURATION; UL, CSA, NOM 057 APPROVAL; -40 TO 60 DEG C TEMPERATURE RATING; THERMOPLASTIC BODY MATERIAL; 14 AWG 6 INCH WIRE LEAD TERMINAL TYPE
MSDS Form Number *
Material Thermoplastic
Model 1306
Mounting Snap-In
NEMA Rating 1-15R
Noun *
Number Of Poles 2
Number Of Wires 2
Outlet Rating 125 V 15 Ampere 2-Pole 2-Wire
Panel Thickness 0.028 to 0.06 Inch
Product Description DO NOT USE IN POINTE-CLAIRE
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Size 1.16 H x 0.52 W x 0.94 D IN
Special Features Non Grounding, 2-Year Limited Warranty, Made in Mexico
Standard NOM Certified (057);CSA Certified (File LR-2781);UL Listed (LR-E13399)
Temperature Rating -40 to +60 DEG C;-40 to 60 Deg C
Terminal Type 14 AWG 6 Inch Wire Lead
Type Straight Blade;Snap-In;Polarized
UNSPSC 39121406
UPC 07847716840
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125 V
Wire Size 14 AWG
