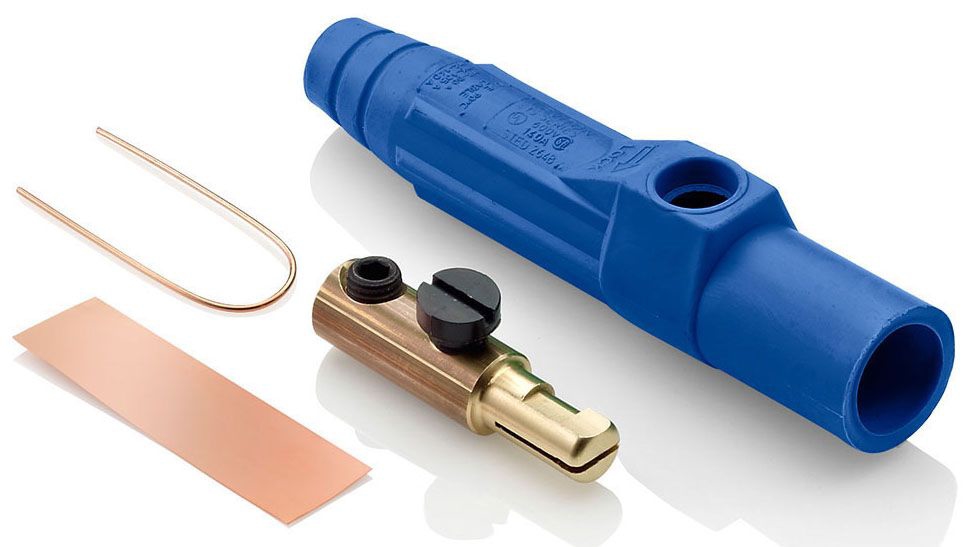

LEV 15D21-UB

BU MALE DETACH PLUG TAPER NOSE #8-2AWG

Page Loading...
LEVITON MFG CO.
BU MALE DETACH PLUG TAPER NOSE #8-2AWG

Mouse over image to zoom, click to enlarge

Description:
BU MALE DETACH PLUG TAPER NOSE #8-2AWG

UPC:  07847770865

Part Number: 15D21-UB

UNSPSC: 39121421

Status:  UNKNOWN

Retail Price:  $21.72 / EA
Your Price:  $16.55 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 15D21-UB
Additional Information Includes Strain Relief Copper Wire; Applicable Standard ISO 9001
Amperage Rating 150 A
Application Industrial
Approval UL 1691, CSA
Base Price 0.0000
Brand Name Leviton;Rhino-Hide[R]
Cable Size 8 to 2 AWG
Catalog Number 15D21-UB
Color Blue
Commerce Sector Construction Materials
Commodity Code 51500
Commodity Description Pin & Sleeve Devices
Connection Type Single Set Screw
Construction Taper Nose
Contact Material Brass
CountryOfOrigin MX
Current Rating 150 Amp
DDCATEGORY 0
Directory CIS
Enclosure NEMA 3R
Families 0
Family Description UnCategorized
Image Location * Image
Industry ELX
Insulator Color Blue
Insulator Material Thermoplastic
InvoiceDescription 15 SERIES MALE PLUG 150A BLUE;150A 600V PLUG
Item Number 70865
Long Description CAM-TYPE PLUG, MALE, DETACHABLE TYPE; 0.94 INCH DIAMETER X 4.46 INCH LENGTH SIZE; SINGLE SET SCREW CONNECTION TYPE; 8 TO 2 AWG CABLE SIZE; UL 1691, CSA APPROVAL; INDUSTRIAL APPLICATION; 600 VOLT AC/DC VOLTAGE RATING; VULCANIZED PROCESS; NEMA 3R ENCLOSURE
MSDS Form Number *
Model 15
Mounting single set screw
Noun *
Number Of Poles 1
Process Vulcanized
Product Description BU MALE DETACH PLUG TAPER NOSE #8-2AWG
Product Keywords WEBREADY
Product Name Electrical connector assemby
ProductLine LEV
Size 0.94 Inch Diameter x 4.46 Inch Length
Special Features Continuous cable range
Type DETACHABLE PLUG;Male, Detachable
UNSPSC 39121421
UPC 07847770865
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 600 V;600 Volt AC/DC

Resources

CatalogNumber 15D21-UB
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
