LEV 15D21-UG

GN MALE DETACH PLUG TAPER NOSE #8-2AWG

Page Loading...
LEVITON MFG CO.
GN MALE DETACH PLUG TAPER NOSE #8-2AWG

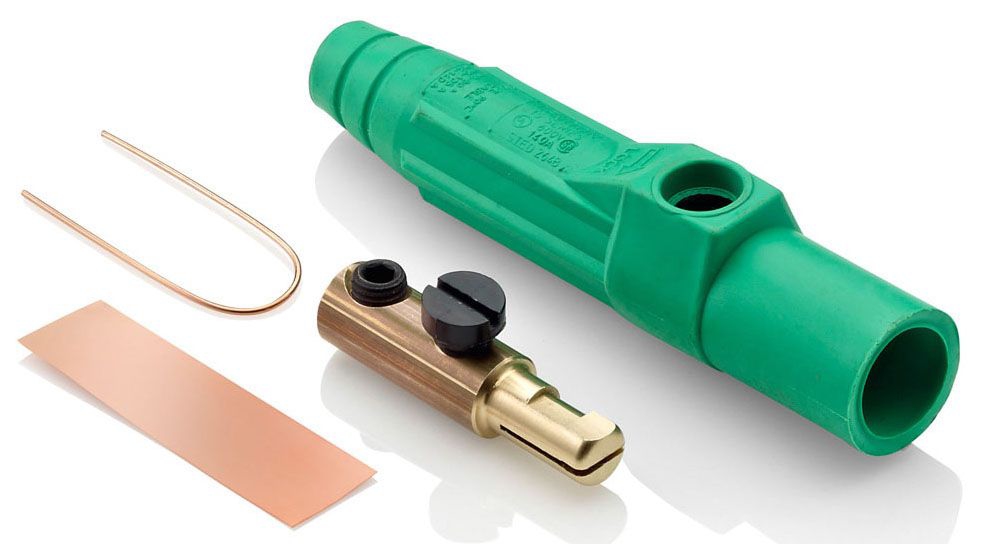

Mouse over image to zoom, click to enlarge

Description:
GN MALE DETACH PLUG TAPER NOSE #8-2AWG

UPC:  07847770864

Part Number: 15D21-UG

UNSPSC: 39121421

Status:  UNKNOWN

Retail Price:  $21.09 / EA
Your Price:  $16.06 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 15D21-UG
Additional Information Includes Strain Relief Copper Wire; Applicable Standard ISO 9001
Application Industrial
Approval UL 1691, CSA
Base Price 0.0000
Brand Name Leviton;Rhino-Hide[R]
Cable Size 8 to 2 AWG
Catalog Number 15D21-UG
Color Green
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Connection Type Single Set Screw
Construction Taper Nose
Contact Material Brass
CountryOfOrigin MX
Current Rating 150 Amp
DDCATEGORY 574
Directory CIS
Enclosure NEMA 3R
Families 574
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Image Location * Image
Industry ELX
Insulator Color Green
Insulator Material Thermoplastic
InvoiceDescription 15 SERIES MALE PLUG 150A GREEN;150A 600V PLUG
Item Number 70864
Long Description CAM-TYPE PLUG, MALE, DETACHABLE TYPE; 0.94 INCH DIAMETER X 4.46 INCH LENGTH SIZE; SINGLE SET SCREW CONNECTION TYPE; 8 TO 2 AWG CABLE SIZE; UL 1691, CSA APPROVAL; INDUSTRIAL APPLICATION; 600 VOLT AC/DC VOLTAGE RATING; VULCANIZED PROCESS; NEMA 3R ENCLOSURE
MSDS Form Number *
Model 15
Noun *
Number Of Poles 1
Process Vulcanized
Product Description GN MALE DETACH PLUG TAPER NOSE #8-2AWG
Product Keywords WEBREADY
Product Name Electrical connector assemby
ProductLine LEV
Size 0.94 Inch Diameter x 4.46 Inch Length
Special Features Detachable
Standard UL/CSA
Sub Brand Rhino-Hide
Type Male Plug;Male, Detachable
UNSPSC 39121421
UPC 07847770864
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 600 Volt AC/DC

Resources

CatalogNumber 15D21-UG
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
