LEV 15D22-UW

WH FEM DETACH PLUG TAPER NOSE #8-2AWG

Page Loading...
LEVITON MFG CO.
WH FEM DETACH PLUG TAPER NOSE #8-2AWG

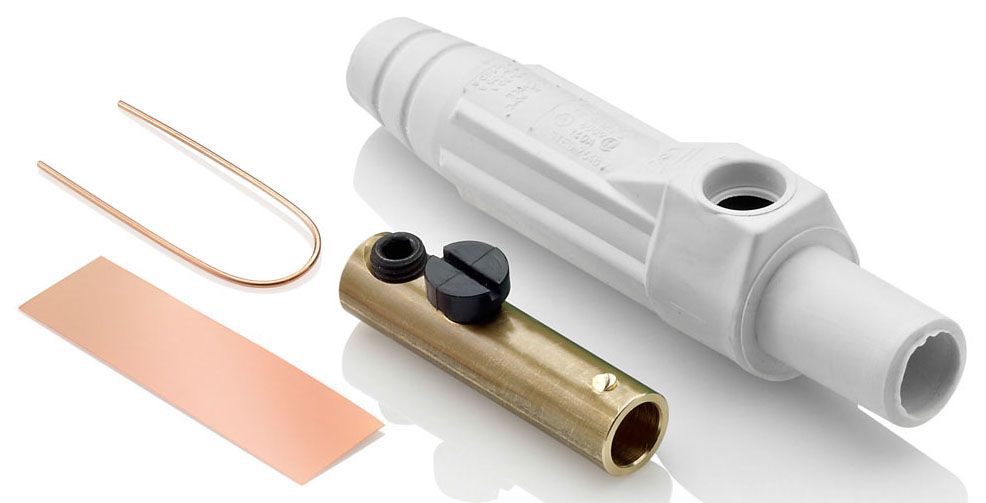

Mouse over image to zoom, click to enlarge

Description:
WH FEM DETACH PLUG TAPER NOSE #8-2AWG

UPC:  07847771044

Part Number: 15D22-UW

UNSPSC: 39121421

Status:  UNKNOWN

Retail Price:  $23.73 / EA
Your Price:  $18.08 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 15D22-UW
Additional Information Includes Strain Relief Copper Wire; Applicable Standard ISO 9001
Amperage Rating 150 A
Application Industrial
Approval UL 1691, CSA
Base Price 0.0000
Brand Name Rhino-Hide[R]
Cable Size 8 to 2 AWG
Catalog Number 15D22-UW
Color White
Commerce Sector Construction Materials
Commodity Code 51500
Commodity Description Pin & Sleeve Devices
Connection Type Single Set Screw
Construction Taper Nose
Contact Material Brass
CountryOfOrigin MX
Current Rating 150 Amp
DDCATEGORY 0
Directory CIS
Enclosure NEMA 3R
Families 0
Family Description UnCategorized
Image Location * Image
Industry ELX
Insulator Color White
Insulator Material Thermoplastic
InvoiceDescription WH FEM DETACH PLUG TAPER NOSE #8-2AWG;140A DETACHABLE PLUG
Item Number 71044
Long Description CAM-TYPE DETACHABLE PLUG, FEMALE, DETACHABLE TYPE; 0.94 INCH DIAMETER X 4.26 INCH LENGTH SIZE; SINGLE SET SCREW CONNECTION TYPE; 8 TO 2 AWG CABLE SIZE; UL 1691, CSA APPROVAL; INDUSTRIAL APPLICATION; 600 VOLT AC/DC VOLTAGE RATING; VULCANIZED PROCESS
MSDS Form Number *
Model 15
Noun *
Number Of Poles 1
Process Vulcanized
Product Description WH FEM DETACH PLUG TAPER NOSE #8-2AWG
Product Keywords WEBREADY
Product Name Electrical connector assemby
ProductLine LEV
Size 0.94 Inch Diameter x 4.26 Inch Length
Special Features Female Detachable Plug, Taper Nose
Type 15 Series Single Pole;Female, Detachable
UNSPSC 39121421
UPC 07847771044
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 600;600 Volt AC/DC

Resources

CatalogNumber 15D22-UW
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
