LEV 16252-W

WH REC DUP DEC 2PO 3WI 5-15R 15A125V

Page Loading...
LEVITON MFG CO.
WH REC DUP DEC 2PO 3WI 5-15R 15A125V

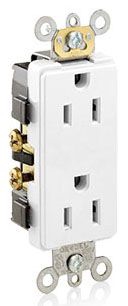

Mouse over image to zoom, click to enlarge

Description:
WH REC DUP DEC 2PO 3WI 5-15R 15A125V

UPC:  07847781968

Part Number: 16252-W

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $23.93 / EA
Your Price:  $6.73 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 16252-W
Additional Information Power Rating 1/2 HP; Material Brass (Contact), Zinc Plated Steel (Strap); Temperature Rating -40 to 60 Deg C; Flammability Rating UL 94 V-2; Applicable Standard ANSI C73, NEMA WD-6, NOM 057
Amperage Rating 15 A
Application Commercial
Approval UL 498, CSA C22.2
Base Price 0.0000
Brand Name Leviton;Decora Plus
Catalog Number 16252-W
Color White
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-15R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 15 Amp
DDCATEGORY 573
Dielectric Strength 2000 (Min.) V
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Description Receptacles & Surge Protectors
Grade Heavy Duty Specification, Commercial
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription WH REC DUP DEC 2PO 3WI 5-15R 15A125V;WHT DPLX RCPT-N5-15R
Item Number 81968
Long Description STRAIGHT BLADE RECEPTACLE, DECORATOR DUPLEX TYPE; THERMOPLASTIC NYLON (BODY/FACE) MATERIAL; WHITE COLOR; 5-15R CONFIGURATION; 3 WIRE(S); HEAVY DUTY SPECIFICATION, COMMERCIAL GRADE; UL 498, CSA C22.2 APPROVAL; 125 VOLT VOLTAGE RATING
MSDS Form Number *
Material Thermoplastic;Thermoplastic Nylon (Body/Face)
Model 16252
Mounting Wall Box
NEMA Rating 5-15R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description WH REC DUP DEC 2PO 3WI 5-15R 15A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Size 46 H x 1.52 W x 1.14 D IN
Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399)
Sub Brand Decora Plus
Temperature Rating -40 to +60 DEG C
Type Straight Blade;Duplex Outlet;Decorator Duplex
UNSPSC 39121406
UPC 07847781968
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125 V;125 Volt
Wire Size 14-10 AWG
Wiring Back, Side

Resources

CatalogNumber 16252-W
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
