LEV 16352-E

EB REC DUP DEC 2P3W 520R 20A125V

Page Loading...
LEVITON MFG CO.
EB REC DUP DEC 2P3W 520R 20A125V

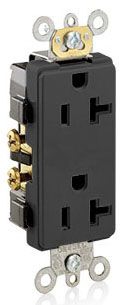

Mouse over image to zoom, click to enlarge

Description:
EB REC DUP DEC 2P3W 520R 20A125V

UPC:  07847781974

Part Number: 16352-E

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $38.75 / EA
Your Price:  $19.07 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 16352-E
Additional Information Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1 HP; Material Brass (Contact), Zinc Plated Steel (Strap); Temperature Rating -40 to 60 Deg C
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Decora Plus
Catalog Number 16352-E
Color Black
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-20R
Connection Back and Side Wired
Constructional Feature Impact Resistant
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 573
Depth 1.14 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94)
Families 573
Family Color Black
Family Description Receptacles & Surge Protectors
Grade Commercial, Heavy Duty
Ground Type Self-Grounding
Height 46 in
Image Location * Image
Industry ELX
InvoiceDescription EB REC DUP DEC 2P3W 520R 20A125V;BLK DPLX RCPT-N5-20R
Item Number 81974
Long Description STRAIGHT BLADE RECEPTACLE, DECORATOR DUPLEX TYPE; THERMOPLASTIC NYLON MATERIAL; BLACK COLOR; 5-20R CONFIGURATION; 3 WIRE(S); COMMERCIAL, HEAVY DUTY GRADE; UL 498, CSA C22.2, NOM 057 APPROVAL; 125 V VOLTAGE RATING; 20 AMPERE CURRENT RATING; SELF-GROUNDING
MSDS Form Number *
Material Thermoplastic Nylon
Material Quality Thermoplastic
Model Series 16352
Mounting Wallbox
NEMA Rating 5-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description EB REC DUP DEC 2P3W 520R 20A125V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No. 42 (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Listed 498 (File E13399)
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Duplex Outlet;Straight Blade;Decorator Duplex
UNSPSC 39121406
UPC 07847781974
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125;125 V
Width 1.31 in
Wire Size 14-10
Wiring Back, Side

Resources

CatalogNumber 16352-E
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
