LEVITON MFG CO.

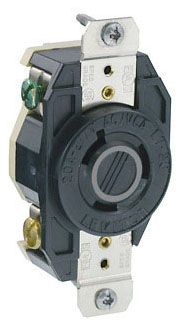

EB REC LOCK 2PO 3WI NEMA L7-20 20A277VAC

Mouse over image to zoom, click to enlarge

Description:
EB REC LOCK 2PO 3WI NEMA L7-20 20A277VAC

UPC:  07847780980

Part Number: 2330

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $42.96 / EA
Your Price:  $25.80 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2330
Additional Information APPLICABLE STANDARD ANSI C 73, NEMA WD 1 AND WD 6; APPLICATION INDUSTRIAL; OPERATING TEMPERATURE -40 TO 60 DEG C
Amperage Rating 20 A
Application Commercial
Approval UL 498, CSA C22.2, NOM
Base Price 0.0000
Brand Name Leviton
Catalog Number 2330
Color Black
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration L7-20R
Connection Back Wired;Side Wired
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 573
Dielectric Strength 2000 (Min.) V
Directory CIS
Environmental Conditions Flammability (Rated V-2, Rated V-0 per UL94)
Face Outer Diameter 2.38 Inch
Families 573
Family Description Receptacles & Surge Protectors
Ground Type Grounding
Image Location * Image
Industry ELX
InvoiceDescription L7-20R RECEP;LKG FLUSH RCPT
Item Number 80980
Long Description LOCKING RECEPTACLE, NYLON MATERIAL; BLACK COLOR; L7-20R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM APPROVAL; 277 VOLT VOLTAGE RATING; FLUSH MOUNT MOUNTING; 20 AMP CURRENT RATING; GROUNDING; 2 POLE(S); BACK, SIDE WIRING
MSDS Form Number *
Material PBT;Nylon
Mounting Box;Flush Mount
NEMA Rating L7-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Product Description EB REC LOCK 2PO 3WI NEMA L7-20 20A277VAC
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Size 3.63 H x 1.69 W x 1.31 D IN
Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498
Sub Brand V-0-Max
Temperature Rating -40 to +60 DEG C
Type Flush Mount Locking Receptacle
UNSPSC 39121406
UPC 07847780980
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 277 V;277 Volt
Wire Size 14-8 AWG
Wiring Back, Side

Resources

CatalogNumber 2330
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
