LEV 2343

EB CONN LOCK 2PO3WI NEMA L8-20R 20A480V

Page Loading...
LEVITON MFG CO.
EB CONN LOCK 2PO3WI NEMA L8-20R 20A480V

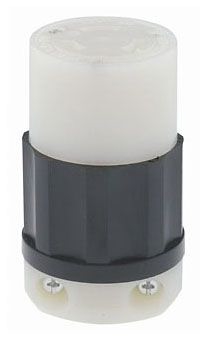

Mouse over image to zoom, click to enlarge

Description:
EB CONN LOCK 2PO3WI NEMA L8-20R 20A480V

UPC:  07847780802

Part Number: 2343

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $62.32 / EA
Your Price:  $34.07 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2343
Additional Information Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 60 Deg C; Wire Gauge 16 to 10 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Zinc Plated Steel (Assembly Screw); Application Industrial
Amperage Rating 20 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Brand Name Black & White[R]
Catalog Number 2343
Color Black, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L8-20R
Connection Screwed Terminal
Constructional Feature Impact Resistant, Abrasion Resistant, Chemical Resistant
Cord Size 0.385 to 0.78 Inch
Cord Type S;SO;SOO;ST;STO;STOO;STOW-A;STW;STW-A
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Black;White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Grounding
Horsepower 3 HP
Image Location * Image
Industry ELX
InvoiceDescription EB CONN LOCK 2PO3WI NEMA L8-20R 20A480V;LKG CONN L8-20R
Item Number 80802
Length 3.53 in
Long Description LOCKING CONNECTOR, POLARIZED TYPE; NYLON MATERIAL; BLACK, WHITE COLOR; L8-20R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 480 VAC VOLTAGE RATING; 20 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S)
MSDS Form Number *
Material Impact Modified Nylon;Nylon
Mounting Cable
NEMA Rating L8-20R
Noun *
Number Of Poles 2
Number Of Wires 3
Phase 1
Product Description EB CONN LOCK 2PO3WI NEMA L8-20R 20A480V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Standard ANSI (C-73);CSA Certified (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)
Type Locking Connector;Polarized
UNSPSC 39121402
UPC 07847780802
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 480;480 VAC
Wire Size 18-10

Resources

CatalogNumber 2343
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
