LEV 2363

EB CONN LOCK 3PO 3WI L10-20R 20A125/250V

Page Loading...
LEVITON MFG CO.
EB CONN LOCK 3PO 3WI L10-20R 20A125/250V

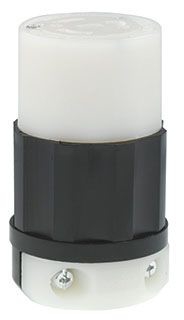

Mouse over image to zoom, click to enlarge

Description:
EB CONN LOCK 3PO 3WI L10-20R 20A125/250V

UPC:  07847780804

Part Number: 2363

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $60.90 / EA
Your Price:  $33.30 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2363
Additional Information Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 60 Deg C; Wire Gauge 16 to 10 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Zinc Plated Steel (Assembly Screw); Application Industrial
Amperage Rating 20 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Assembly Screws Zinc Plated Steel
Base Price 0.0000
Blades Contacts Material Solid Brass
Brand Name Black & White[R]
Catalog Number 2363
Color Black, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L10-20R
Constructional Feature Impact Resistant, Abrasion Resistant, Chemical Resistant
Cord Size 0.385 to 0.78 Inch
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Black;White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Non-Grounding
Horsepower 2 (L-N);2 (L-L) HP
Image Location * Image
Industry ELX
InvoiceDescription EB CONN LOCK 3PO 3WI L10-20R 20A125/250V;LKG CONN L10-20R
Item Number 80804
Length 3.53 in
Long Description LOCKING CONNECTOR, NON-POLARIZED TYPE; NYLON MATERIAL; BLACK, WHITE COLOR; L10-20R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 125/250 V VOLTAGE RATING; 20 AMPERE CURRENT RATING; NON-GROUNDING; 3 POLE(S)
MSDS Form Number *
Material Super Tough Nylon (Body);Nylon
Mounting Cable
NEMA Rating L10-20R
Noun *
Number Of Poles 3
Number Of Wires 3
Product Description EB CONN LOCK 3PO 3WI L10-20R 20A125/250V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Replacement Parts Material Brass (Terminal Screws);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Thermoplastic (Back Cover)
Standard ANSI (C-73);CSA Certified (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL Listed 498 (File E13393)
Type Locking Connector;Non-Polarized
UNSPSC 39121402
UPC 07847780804
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 125/250;125/250 V
Wire Size 18-10;.385-.720

Resources

CatalogNumber 2363
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
