LEV 2421

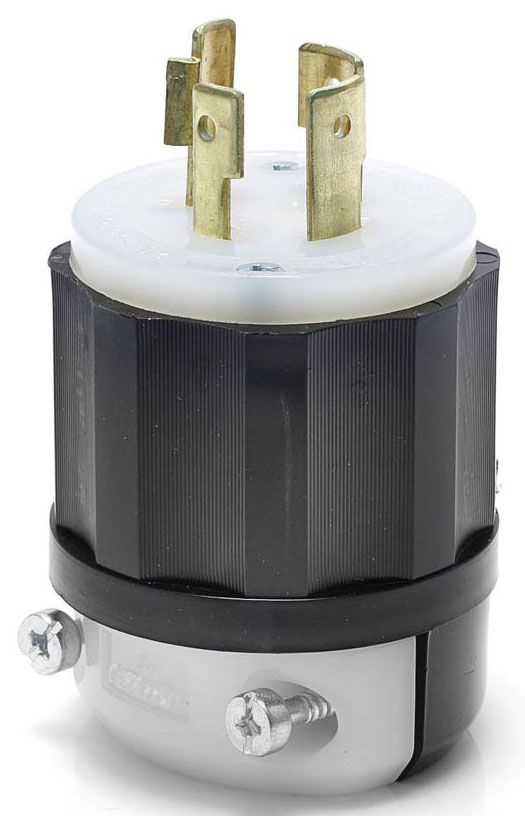

EB PLUG LOCK 3PO 4WI 3PH L15-20P 20A250V

Page Loading...
LEVITON MFG CO.
EB PLUG LOCK 3PO 4WI 3PH L15-20P 20A250V

Mouse over image to zoom, click to enlarge

Description:
EB PLUG LOCK 3PO 4WI 3PH L15-20P 20A250V

UPC:  07847780812

Part Number: 2421

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $44.57 / EA
Your Price:  $34.27 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2421
Additional Information Temperature Rating -40 to 60 Deg C; Wire Size 14 to 10 AWG; Application Industrial
Amperage Rating 20 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 2421
Color Black, White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L15-20P
Connection Screwed Terminal
Constructional Feature Impact Resistant, Chemical Resistant, Abrasion Resistant
Cord Size 0.595 to 0.895 Inch
Cord Type S;SO;SOO;ST;STO;STOO;STOW-A;STW;STW-A
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Black;White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Grounding
Horsepower 3 HP
Image Location * Image
Industry ELX
InvoiceDescription EB PLUG LOCK 3PO 4WI 3PH L15-20P 20A250V;LKG PLUG L15-20P
Item Number 80812
Length 2.7 in
Long Description LOCKING DEVICE PLUG, POLARIZED TYPE; SUPER TOUGH NYLON (BODY), SOLID BRASS (BLADE/CONTACT) MATERIAL; BLACK, WHITE COLOR; L15-20P CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 250 V (3-PHASE) VOLTAGE RATING; 20 AMPERE CURRENT RATING
MSDS Form Number *
Material Impact Modified Nylon;Super Tough Nylon (Body), Solid Brass (Blade/Contact)
Mounting Cable
NEMA Rating L15-20P
Noun *
Number Of Poles 3
Number Of Wires 4
Phase 3
Product Description EB PLUG LOCK 3PO 4WI 3PH L15-20P 20A250V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Standard ANSI (C-73);CSA Certified (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)
Type Locking Plug;Polarized
UNSPSC 39121402
UPC 07847780812
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 250;250 V (3-Phase)
Wire Size 18-10
