LEV 2431

EB PLUG LOCK 3P4W 3PH L16-20P 20A480V

Page Loading...
LEVITON MFG CO.
EB PLUG LOCK 3P4W 3PH L16-20P 20A480V

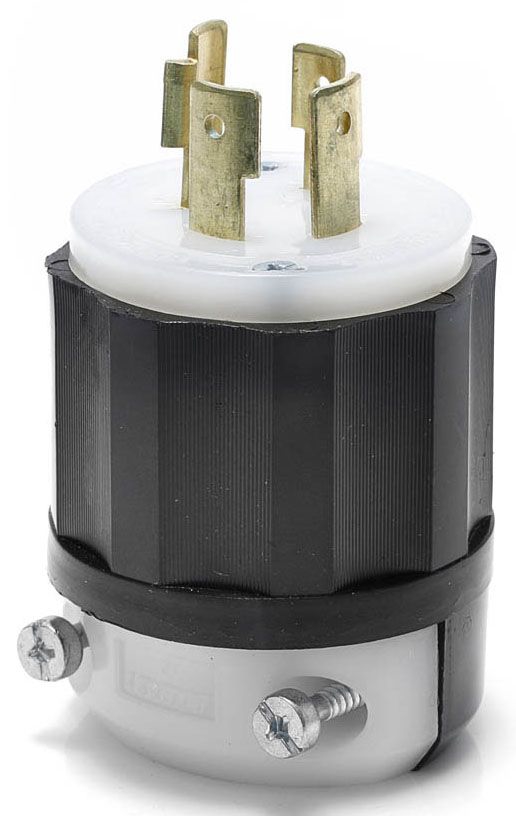

Mouse over image to zoom, click to enlarge

Description:
EB PLUG LOCK 3P4W 3PH L16-20P 20A480V

UPC:  07847780818

Part Number: 2431

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $50.15 / EA
Your Price:  $32.91 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2431
Additional Information Wire Size 18 to 10 AWG; Blade Material Solid Brass; Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard WD-1/6, ANSI C73, Federal Specification WC-596
Amperage Rating 20 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057
Base Price 0.0000
Catalog Number 2431
Color Black/White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L16-20P
Connection Screwed Terminal
Constructional Feature Impact/Chemical/Abrasion Resistant
Cord Size 0.595 to 0.895 Inch
Cord Type S;SO;SOO;ST;STO;STOO;STOW-A;STW;STW-A
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Black;White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Grounding
Horsepower 5 HP
Image Location * Image
Industry ELX
InvoiceDescription EB PLUG LOCK 3P4W 3PH L16-20P 20A480V;LKG PLUG L16-20P
Item Number 80818
Length 2.7 in
Long Description LOCKING PLUG, POLARIZED TYPE; IMPACT MODIFIED NYLON MATERIAL; BLACK/WHITE COLOR; L16-20P CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2, NOM 057 APPROVAL; 480 VOLT 3-PHASE VOLTAGE RATING; 20 AMP CURRENT RATING; GROUNDING; 3 POLE(S)
MSDS Form Number *
Material Impact Modified Nylon
Mounting Cable
NEMA Rating L16-20P
Noun *
Number Of Poles 3
Number Of Wires 4
Phase 3
Product Description EB PLUG LOCK 3P4W 3PH L16-20P 20A480V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Standard ANSI (C-73);CSA Certified (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)
Type Locking Plug;Polarized
UNSPSC 39121402
UPC 07847780818
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 480;480 Volt 3-Phase
Wire Size 18-10
