LEV 2441

EB PLUG LOCK 4PO 4WI L18-20P 20A120/208V

Page Loading...
LEVITON MFG CO.

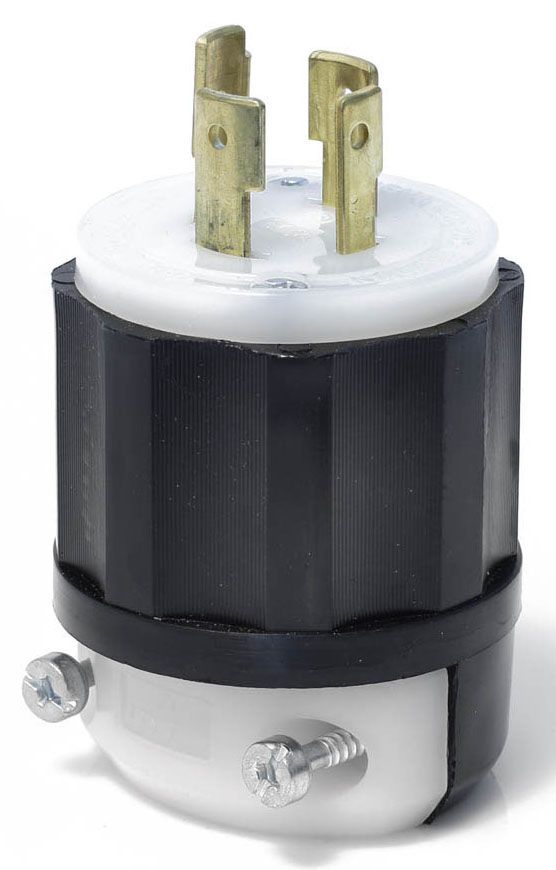

EB PLUG LOCK 4PO 4WI L18-20P 20A120/208V

Mouse over image to zoom, click to enlarge

Description:
EB PLUG LOCK 4PO 4WI L18-20P 20A120/208V

UPC:  07847780826

Part Number: 2441

UNSPSC: 39121402

Status:  UNKNOWN

Retail Price:  $65.04 / EA
Your Price:  $35.56 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2441
Additional Information OPERATING TEMPERATURE -40 TO 60 DEG C; WITH THERMOPLASTIC COVER
Amperage Rating 20 A
Application Industrial
Approval UL, CSA, NOM
Assembly Screws Zinc Plated Steel
Base Price 0.0000
Blades Contacts Material Solid Brass
Catalog Number 2441
Color Black/White
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Configuration L18-20P
Cord Size 0.595 to 0.895 Inch, 14 to 10 AWG
CountryOfOrigin MX
Current Rating 20 Amp
DDCATEGORY 574
Directory CIS
Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Families 574
Family Color Black;White
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Ground Type Non-Grounding
Image Location * Image
Industry ELX
InvoiceDescription EB PLUG LOCK 4PO 4WI L18-20P 20A120/208V;LKG PLUG L18-20P
Item Number 80826
Length 2.47 in
Long Description LOCKING PLUG, IMPACT MODIFIED NYLON MATERIAL; BLACK/WHITE COLOR; L18-20P CONFIGURATION; 4 WIRE(S); UL, CSA, NOM APPROVAL; 120/208 VOLT AC STAR 3-PHASE VOLTAGE RATING; 20 AMP CURRENT RATING; NON-GROUNDING; 4 POLE(S)
MSDS Form Number *
Material Super Tough Nylon (Body);Impact Modified Nylon
Mounting Cable
NEMA Rating L18-20P
Noun *
Number Of Poles 4
Number Of Wires 4
Phase 3
Product Description EB PLUG LOCK 4PO 4WI L18-20P 20A120/208V
Product Keywords WEBREADY
Product Name Electrical plugs
ProductLine LEV
Replacement Parts Material Brass (Terminal Screws);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Thermoplastic (Back Cover)
Standard ANSI (C-73);CSA C22.2 No. 42 (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393)
Type Locking Plug
UNSPSC 39121402
UPC 07847780826
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 120/208;120/208 Volt AC Star 3-Phase
Wire Size 18-10;.560-.775

Resources

CatalogNumber 2441
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
