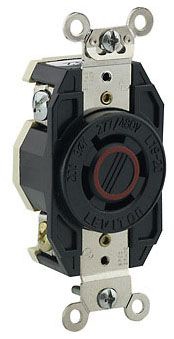

LEV 2450

EB REC LOCK 4PO4WI3PH L19-20 20A277/480V

Page Loading...
LEVITON MFG CO.
EB REC LOCK 4PO4WI3PH L19-20 20A277/480V

Mouse over image to zoom, click to enlarge

Description:
EB REC LOCK 4PO4WI3PH L19-20 20A277/480V

UPC:  07847704544

Part Number: 2450

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $106.91 / EA
Your Price:  $43.14 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2450
Additional Information Applicable Standard ANSI C-73, NEMA WD-1/6; Operating Temperature -40 to 60 Deg C; Application Industrial
Amperage Rating 20 A
Application Industrial
Approval UL 498, CSA C22.2, NOM 057, FS WC596
Base Price 0.0000
Brand Name Black & White[R], V-O-Max[R]
Catalog Number 2450
Color Black
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration L19-20R
Connection Back Wired;Side Wired
Constructional Feature Impact Resistant, Abuse Resistant
CountryOfOrigin MX
Current Rating 20 Ampere
DDCATEGORY 573
Depth 1.31 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2, Rated V-0 per UL94)
Families 573
Family Color Black
Family Description Receptacles & Surge Protectors
Ground Type Non-Grounding
Height 3.63 in
Image Location * Image
Industry ELX
InvoiceDescription EB REC LOCK 4PO4WI3PH L19-20 20A277/480V;LKG FLUSH RCPT
Item Number 04544
Long Description LOCKING RECEPTACLE, SINGLE LOCKING TYPE; NYLON (BODY), ULTRAMID (FACE), VALOX (BASE) MATERIAL; BLACK COLOR; L19-20R CONFIGURATION; 4 WIRE(S); UL 498, CSA C22.2, NOM 057, FS WC596 APPROVAL; 277/480 V STAR 3-PHASE VOLTAGE RATING; FLUSH MOUNTING
MSDS Form Number *
Material PBT;Nylon (Body), Ultramid (Face), Valox (Base)
Mounting Box;Flush
NEMA Rating L19-20R
Noun *
Number Of Poles 4
Number Of Wires 4
Phase 3
Product Description EB REC LOCK 4PO4WI3PH L19-20 20A277/480V
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No.42;NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Flush Mount Locking Receptacle;Single Locking
UNSPSC 39121406
UPC 07847704544
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 277;480;277/480 V Star 3-Phase
Width 1.69 in
Wire Size 14-8
Wiring Back, Side

Resources

CatalogNumber 2450
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
