LEV 2620

EB REC LOCK 2PO 3WI L6-30 30A250V.

Page Loading...
LEVITON MFG CO.
EB REC LOCK 2PO 3WI L6-30 30A250V.

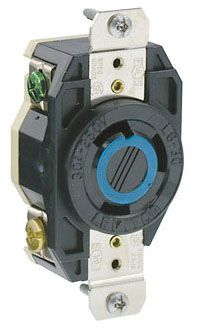

Mouse over image to zoom, click to enlarge

Description:
EB REC LOCK 2PO 3WI L6-30 30A250V.

UPC:  07847780949

Part Number: 2620

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $67.69 / EA
Your Price:  $39.47 / EA


Quantity  EA

Specifications

Manufacturer Name LEVITON MFG CO.
MfgPartNo 2620
Additional Information Overall Dimension 3.63 Inch Length x 1.69 Inch Width x 1.31 Inch Depth; Cord Size 0.385 to 0.86 Inch; Dielectric Voltage Rating 2000 Volt; Power Rating 2 HP; Contact Material Brass; Screw Material Chromated Brass; Strap/Clamp Material Nickel Plated Brass;
Amperage Rating 30 A
Application Commercial
Approval UL 498, CSA C22.2
Base Price 0.0000
Brand Name V-O-Max [R]
Catalog Number 2620
Color Black
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration L6-30R
Connection Back Wired;Side Wired
Constructional Feature Corrosive
CountryOfOrigin MX
Current Rating 30 Amp
DDCATEGORY 573
Depth 1.31 in
Dielectric Strength 2000 (Min.)
Directory CIS
Environmental Conditions Flammability (Rated V-2, Rated V-0 per UL94)
Face Outer Diameter 1.56 Inch
Families 573
Family Color Black
Family Description Receptacles & Surge Protectors
Ground Type Grounding
Height 3.63 in
Image Location * Image
Industry ELX
InvoiceDescription EB REC LOCK 2PO 3WI L6-30 30A250V.;LKG FLUSH RCPT
Item Number 80949
Long Description LOCKING RECEPTACLE, SINGLE LOCKING TYPE; NYLON (BODY), ULTRAMID (FACE), VALOX (BASE), VALOX 357 (COVER) MATERIAL; BLACK COLOR; L6-30R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2 APPROVAL; 250 VOLT AC VOLTAGE RATING; FLUSH MOUNT MOUNTING
MSDS Form Number *
Material PBT;Nylon (Body), Ultramid (Face), Valox (Base), Valox 357 (Cover)
Mounting Box;Flush Mount
NEMA Rating L6-30R
Noun *
Number Of Poles 2
Number Of Wires 3
Product Description EB REC LOCK 2PO 3WI L6-30 30A250V.
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine LEV
Standard ANSI (C-73);CSA C22.2 No.42;NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498
Temperature Rating Maximum 140 F
Temperature Rating Minimum -40 F
Type Flush Mount Locking Receptacle;Single Locking
UNSPSC 39121406
UPC 07847780949
Vendor Name LEVITON MFG CO.
Vendor Number 078477
Vendor Short Name LEV
Voltage Rating 250;250 Volt AC
Width 1.69 in
Wire Size 14-8
Wiring Back, Side

Resources

CatalogNumber 2620
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
